Info

  • 2 x 18" bassreflex subwoofer
  • The anti-double-18" - true impulse response and detailed bass response
  • Speakon connectors in front grille for optimum wiring of cardioid bass arrays
  • Polyurea coating, optional RAL colors (Warnex texture paint)
  • Simple handling and easy stacking through optimized handle position
  • Endwise vertical compatible Ikarray-12 with stacking plate or OPER-Frame
  • Operate flat lying and endwise vertical
  • Deep stilling connector panel
  • Europallet dimension to all 3 sides

The Paveosub-218 is a heavily vented bassreflex subwoofer designed for highest quality mobile and installation application.

Two premium 18" neodymium transducers make sure it can deliver powerful and distortion-free sound pressure levels while still providing a dynamic and low bass. Low moving mass coupled with a powerful neodymium motor provide precise signalreproduction with excellent transient response which sonically outclasses other 18" designs. A large format and powerful voice coil together with sophisticated cooling convert amplifier power more efficiently and keep powercompression low even at longterm maximum power.

Large format ports increase efficiency and prevent annoying vent noise across the whole performance range. The design of the ports further strengthens the cabinet's top and bottom. Additional reinforcement and bracing prevents resonances, increases rear attenuation and turns the Paveosub-218 into an extemely robust and ideal touring subwoofer.

There are 8 optimized handles accessible from any direction (they even include drains !) so you won't break your back.

You won't strain your back during transport and set-up due to 8 optimized handles (they even include drains !) which are easily accessible from any direction.

The subwoofer can be used horizontally or upright and provides. Stacking trays and two M20 pole mount as well as foots on the opposite side. When used upright it forms an elegant package together with the Ikarray-12 due the same 60cm width of the system. The stacking trays are made to fit Ikarray OPER-frames and Ikarray Gound-Stacking-Boards.

In addition to the rear connector panel you can find two additonal Speakon connectors on the robust front grille. They provide easy access when the subwoofer is positioned under the stage floor or when cabinets are turned around for creating cardioid arrays.

This way cables can be kept out of sight from the audience. The front connectors as well as the loop-through connector on the rear panel use rubber caps to protect them from moisture.

There are two options for easy transport:

  • the cabinet can be fitted with 100 mm bluewheels on the rear side (16 x M6 fittings)
  • via stackable front transport covers including wheels and butterfly latches

Voice-Acoustic provides upgrades for Paveosub-218 to the self-powered version by fitting 4 kW aplifier modules and DSP board.

Control

The Paveosub-218 is powered by one channel (2.400 W/4 Ω) of HDSP-6 or HDSP-4 nominal impedance is 4 Ω.

HDSP-Amplifiers contain presets to combine subwoofers with Voice-Acoustic tops. There are also presets for cardioid and bass-array application. One HDSP-6 or HDSP-4 can power up to 2 x Paveosub-218.

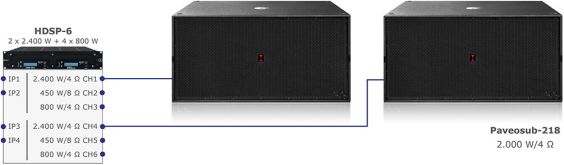

Paveosub-218 via HDSP-6
Paveosub-218 via HDSP-6

Test Reports

Technical Data

Drivers
2 x 18" Neodym long excursion woofer with 4" voice coil

Lower cut-off frequency
32 Hz (- 10 dB)
36 Hz (- 3 dB)

Impedance
4 Ω active separated

Powerhandling (AES / Program / Peak)
2.400 W / 4.800 W / 9.600 W

Sensitivity 1 W/1 m
102,5 dB SPL (half space)

Sound pressure at (AES / Program / Peak)
136 dB SPL / 139 dB SPL / 142 dB SPL

Connection
4 x NEUTRIK NL4 IN/OUT 2+/-

Finish
Polyurea coating in RAL 9005

Dimensions / Weight
600 (H) x 1.160 (W) x 770 mm (D) / 80,5 kg

Downloads

Accessoires

Detachable wheelboard Paveosub-218

Item no. 502184000

Detachable wheelboard to mount on Paveosub-218/218sp, 15 mm wood with polyurea coating, stackable, 2 butterfly locks, 4 handles, 4 black wheels, engraved logo.

Castor set

Item no. 999490985

Castor set for permanent installation at the back, consisting of 4 x Black Wheels 100 x 36 mm with brakes. Including 16 x mounting screws M8 x 30 mm galvanized.

SP-Kit Paveosub-sp-8K4

Item no. 249108402

SP-Kit Paveosub-sp-8K4, self-powered electronic unit for retrofitting existing or used Paveosubs GEN2025 to self-powered., IN/OUT: 2 x analog, 2CH digital AES3, 8.000W, 4x 2.000W, incl. 6 m Schuko/powerCON TRUE1 cable.

SP-Kit Paveosub-sp-8K4D

Item no. 249108403

SP-Kit Paveosub-sp-8K4, self-powered electronic unit for retrofitting existing or used Paveosubs GEN2025 to self-powered., IN/OUT: 2 x analog, 2CH digital AES3, 8.000W, 4x 2.000W, incl. 6 m Schuko/powerCON TRUE1 cable.

Ground stacking truss plate 45 cm

Item no. 401808450-9005

Ground stacking truss plate 45 cm made of aluminium black powder-coated, can be fixed on subs with an M20 screw and lashing straps. Can be used with additional M10 half truss cones for F23/24, F33/34, F44 truss, e.g. to bring tops or small and medium-sized line arrays (IK-6, IK-8) up to height.

Rolldolly Paveosub-218 horizontal

Item no. 502188400

Rolldolly Paveosub-218 horizontal, for 3x subs stacked side by side standing upright, 4 x black wheels 100 x 36 mm with brakes. Optional plug-in outriggers can be inserted in the corners and adjusted in depth and height, e.g. to stabilize a ground stacked PA and to level it on uneven ground.

Rolldolly Paveosub-218 vertical

Item no. 502188300

Rolldolly Paveosub-218 vertical, for up to 4 x stacked subs, 4 x black wheels 100 x 36 mm with brakes. Optional plug-in outriggers can be inserted in the corners and adjusted in depth and height, e.g. to stabilize a ground stacked PA and to level it on uneven ground.

Rolldolly outrigger

Item no. 509994050

Rolldolly outrigger, insertion depth and height can be leveled, incl. Quick-Lock-Pin (must be fixed to the dolly).

Castor heavy-duty

Item no. 504558000

Transport castor heavy-duty for converting Rolldolly. Braked 160 mm swivel castor with ball bearing mounted aluminum rim and 50 mm wide wheel tread. Easier to push on grass. Load capacity 300 kg, incl. screws.

Carrying bag big for 2 x speaker stand/ rod

Item no. 999920000

Carrying bag big, for 2 x speaker stands/speaker rods or Rolldolly outrigger, 1.200 x 190 x 290 mm.

Distance rod with crank type 213/40

Item no. 999921340

M20 Crank speaker rod type 213/40 with Ring-Lock function for clearance-free mounting in the speaker flange, high 920 - 1.520 mm, max. 35 kg load.

Telescopic rod type 213/68

Item no. 999921368

M20 Telescopic speaker rod type 213/68 extra high with Ring-Lock function for clearance-free mounting in the speaker flange, high 1.100 - 1.800 mm, max. 35 kg load.

Telescopic rod type 213/37

Item no. 999921337-9010

M20 Telescopic speaker rod type 213/37 (white), high 905 - 1.450 mm, max. 35 kg load.

Telescopic rod type 246/26 black

Item no. 999924626-9005

M20 Telescopic speaker rod type 246/26 super high (black), high 1.400 - 2.400 mm, max. 30 kg load.

Telescopic rod type 246/26 white

Item no. 999924626-9010

M20 Telescopic speaker rod type 246/26 super high (white), high 1.400 - 2.400 mm, max. 30 kg load.

Carrying bag long

Item no. 999924609

Carrying long, für 2 x telescopic speaker rod type 246/26, 120 x 19 x 29 cm, 1.420 x 200 x 140 mm.

Adapter with Ring-Lock function

Item no. 999921441

Stand adapter with Ring-Lock function, e.g. for speaker stand type 213 or distance rod type 246/26. The ring-lock function ensures a clearance-free fit in the speaker's high stand flange.

M20 Adapter 250 mm

Item no. 999921329

The 250 mm long adapter is perfectly suited as a M20 single rod or as an extension rod.

Speaker rod short type 214/47

Item no. 999921447

M20 M20 speaker rod short type 214/47 with Ring-Lock function, height 250 mm, max. 35 kg load, e.g. for tops in vertically high ground stacks on subwoofers.

Cable Clip for speaker stand/ rod

Item no. 999935000

The cable clip made of robust, durable ABS plastic is specially designed for speaker stands and distance rods with 35 - 36 mm tube. It adheres firmly to the tube and holds the cables securely and neatly in the 24 x 16 mm guide accessible from the outside.

speakON cable 0.5/1/3/6/10/15/20/30 m

Item no. 80440XXX1

Speaker cables in various lengths with Neutrik plug NL4FX. 4 x 4 sq mm, each wire 224 x 0.15 copper, diameter 11 mm, weight 273 g / m. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.

speakON adapter

Item no. 999654669

Adapter to connect two speaker cables.
