Info

  • 4 x 8"/1 x 1,4" high performance monitor
  • Rounded low-profile housing for elegant and unobtrusive use
  • Directional radiation through quad-eight technology
  • Better radiation than conventional coaxial monitor through big horn
  • Low power compression through high heat radiating voice coil surfaces 4 x 2,5" and 1 x 3"
  • Tilting pole socket +/- 18°, tilt for a stand or mounting pole
  • Click-in flyware, tool-free flight mechanics
  • System width compatible with Paveosub-118
  • Hardwearing through 2 mm steel grille with welded reinforcing struts

The CXN-16 is a multi-functional bi-amping high performance monitor.

It's appealing rounded shape let it integrate easily in any venue in an elegant and unobtrusive way. A small footprint and outstanding performance go hand in hand and make sure it is always a perfect choice no matter if it's a confined stage or the biggest venue. The CXN-16 has the world's best size-weight-power ratio: 540 x 540 x 360 mm, 26 kg, 1.000 W AES, 101 db Sensitivity.

4 x 8" equals 16" and surpasses the capabilities of standard 15" designs.

Four separate 2,5" woofer voice coils plus a dedicated 3" horndriver provide much more space for heat dissipation and reduce powercompression. Amplifier power is used more efficiently.

Our goal was to create a professional tool and make a sound technicians work more easy as well as giving artists on stage a reliable response and positive vibe for their performance.

The symmetrical placing of the speakers creates a well centered and smooth soundfield that does not change when the artist moves around. A huge 1,4" horn allows for a very low crossover frequency and precise directivity which is vital for clarity and a detailed response. To lower frequencies this precise directivity pattern is extended by the coupling of our 4 x 8" design and results in an overall very far reach and off-axis rejection. You can pinpoint the sound where you want it.

The CXN-16 surpasses conventional coaxial designs in sound accuracy, directivity behaviour and power handling and sets a new standard. Our 8" woofers have a low moving mass and high sensitivity and react quicker than bigger speakers. Artists receive a very precise response and, more importantly, a well balanced tonal quality to avoid pitch issues and increase gain-before-feedback as much as possible.

The CXN-16 has the same width as the Paveosub-118 and it's feet are made to fit to the stacking trays of the subwoofer. Visually and mechanically they form and elegant package for drum- or DJ-monitoring. A Voice-Acoustic self powered subwoofer and drive a CXN-16 in half-powered mode.

The rugged grille is made from 2 mm steel and it's curved shaped is reinforced by welded bracings on each side and additional support in the middle on top of the horn. It is hardwearing of course.

A small tunnel on the bottom allows cabling to be routed through beneath the monitor. A tilting pole socket, the popular Easyfly mechanism and a flying track for safety cable make CXN-16 into a multifunctional tool for professionals.

Control

The CXN-16 is operated in high-power-mode bi-amping on two channels (2.400 W + 800 W /4 Ω) of HDSP-6 or HDSP-4 amplifier.

In half-power-mode it can connected bi-amping on two channels (800 W + 800 W /4 Ω) of HDSP-6 or HDSP-4. So are the 2.400 W channels of amplifier for example Subwoofer.

A CXN-16 bi-amping can be powered by a Voice-Acoustic self-powered subwoofer in half-powered mode. Impedance is LF 8 Ω and HF 16 Ω.

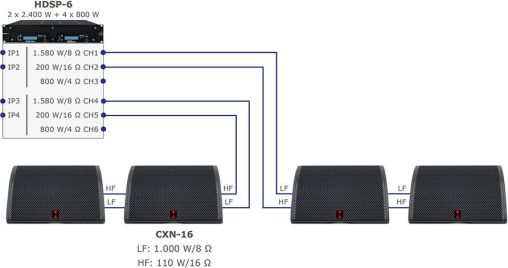

CXN-16 - Full Power Mode via HDSP-6
CXN-16 - Full Power Mode via HDSP-6

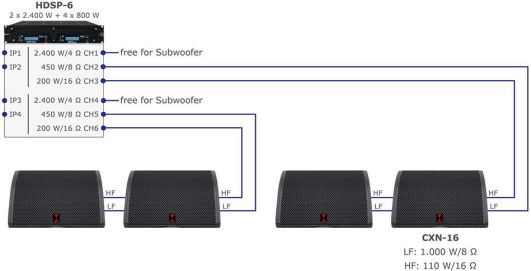

CXN-16 - Half Power Mode via HDSP-6
CXN-16 - Half Power Mode via HDSP-6

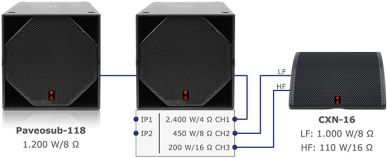

CXN-16 - Half Power Mode via self powered Subwoofer
CXN-16 - Half Power Mode via self powered Subwoofer

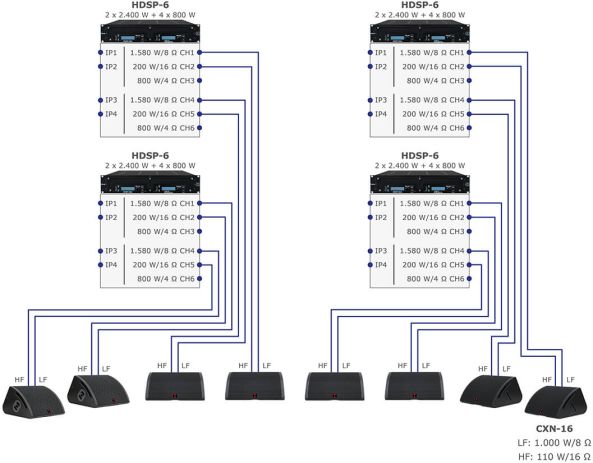

CXN-16 - Set
CXN-16 - Set

Test Reports

Technical Data

Drivers
LF: 4 x 8" Neodym woofer with 2,5" voice coil
HF: 1 x 1,4" Neodym compression driver with 3" voice coil

Frequency range
63 Hz - 17,3 kHz (- 10 dB)
80 Hz - 14 kHz (+/- 3 dB)

Coverage range (h x v)
40° x 60° as Monitor

Impedance
LF: 8 Ω
HF: 16 Ω

Powerhandling (AES / Program / Peak)
LF: 1.000 W / 2.000 W / 4.000 W
HF: 110 W / 220 W / 440 W

Sensitivity 1 W/1 m
LF: 101 dB SPL
HF: 111 dB SPL

Sound pressure at (AES / Program / Peak)
131 dB SPL / 134 dB SPL / 137 dB SPL

Connection
2 x NEUTRIK NL4 IN/OUT 1+/- (4-pole looped-through)

Finish
Polyurea coating in RAL 9005. Special colours also possible with Warnex textured paint

Dimensions / Weight
360 (H) x 540 (W) x 540 mm (D) / 25,6 kg

Downloads

Accessoires

Transport cover for CXN-16

Item no. 500162000

Transport cover for the CXN-16 high performance monitor, stable Codura fabric with padding, all handles are cut out.

Heavy-Duty Flightcase for CXN-16

Item no. 501603000

Heavy-Duty Flightcase for up to two CXN-16 high performance monitors. 4 blue wheels, 4 large butterflys, 8 large folding handles. 9 mm Wood with black scratch-resistant surface. Stable 35 x 35 mm edge profile 2.5 mm thick, 5 mm outside radius. Dimensions/Weight: 600 (h) x 1185 (w) x 595 mm (d) / 40,5 kg.

Easyfly-mechanics

Item no. 409991001

Tool-free flight-mechanics for clicking and exact alignment of the speaker in the horizontal and vertical axis. Removable recording for example the self-lock clamp included.

Carrying bag for Easyfly-Mechanics

Item no. 409992000

Carrying bag for up to two Easyfly-Mechanics with attached truss clamp plus accessory compartment for e.g. two safetys with single studs.

Self-lock clamp

Item no. 999950731

Loudspeakers can be flown by one person with the self-lock clamp. The clamp hooks directly into the truss and can be easily tightened. Load capacity 250 kg.

Universal suspension device for flight mechanics

Item no. 409992001

For suspending speakers from very high ceilings or trusses. Prevents speakers from twisting due to two parallel steel cables or chains and allows horizontal alignment due to central pivot axis. Suitable for Easyfly mechanics, LA-Stick flying mechanics, Ikarray-8 flying mechanics and all U- and C-brackets. Delivery without further mounting accessories.

Tilting and swivelling wall holder XL

Item no. 999924120

Stable wall holder with tilt and swivel orientation: 180° horizontal, 22° vertical adjustable in 11 steps. Expanding mandrel for play-free seating in the tripod base of the speaker. Max. load capacity: 50 kg.

Wall- and Trussholder

Item no. 999924150

Wall- and Trussholder with a joint and a tube clamp, circa 520 mm long. Max. load capacity: 50 kg.

Single stud

Item no. 999957450

Single stud for securing a loudspeaker with safety cable.

Eye Bolt

Item no. 999917370

M10 x 40 mm eye bolt is screwed into rearward mounting point and the speaker can also be secured directly to the housing with a safety cable.

Screwable quick connect

Item no. 999908000

Screwable quick connect member for e.g. single and double stud fittings or safetys.

Safety 6/1000

Item no. 999963100

1 m safety cable 6 mm Ø for securing a suspended loudspeaker. One side with a screwable quick connect.

Speaker stand crank

Item no. 999921300

Stable stand for cranking with double protection against falling. Height: 139 to 218 cm. Max. load capacity: 50 kg.

Speaker stand

Item no. 999921467

Stable stand with expanding mandrel system which provides a tight and firm fit for the speaker. Double protection against falling. Height: 132 - 220 cm. Max. load capacity: 50 kg.

Distance rod with crank

Item no. 999921340

Distance rod for cranking with expanding mandrel system which provides a tight and firm fit for the speaker. Height: 92 - 152 cm. Max. load capacity: 50 kg.

Telescopic rod

Item no. 999921368

Telescopic rod with expanding mandrel system for play-free seating in the tripod base. Height: 110 to 180 cm. Max. load capacity: 35 kg.

Ring-Lock adapter

Item no. 999921441

Adapter for mounting on stands or speaker rods. With Expanding mandrel system which provides a tight and firm fit for the speaker.

Iron base with weight plate

Item no. 999912311

The set includes a flat 10 kg iron base Ø 45 and a 5 kg weight disc. It is suitable distance rods with an M20 screw thread. The weight disc can be mounted tool-free.

Carrying bag for round base Ø 45 cm

Item no. 999912399

Padded bag made of robust, water-repellent nylon, with space for a round base Ø 45 cm with weight disc. The bag has two carrying straps with a soft velcro handle, a sturdy zipper and a transparent window for labels.

Iron base

Item no. 999926705

The iron base 55 x 55 cm has a carrying handle and a cable bushing. The base is suitable distance rods with an M20 screw thread. Weight: 13,5 kg.

Carrying bag for iron base

Item no. 999933100

Padded bag made of robust, water-repellent nylon, with space for a iron base 55 x 55 cm. The bag has a padded handle and a stable zipper.

Carrying bag for 2 x speaker stand/ rod

Item no. 999920000

Carrying bag for two speaker stands or distance rods, also with crank. Two inside compartments with zipper and sturdy handles. Material waterproof nylon.

Cable Clip for speaker stand/ rod

Item no. 999935000

The cable clip made of robust, durable ABS plastic is specially designed for speaker stands and distance rods with 35 - 36 mm tube. It adheres firmly to the tube and holds the cables securely and neatly in the 24 x 16 mm guide accessible from the outside.

speakON cable 0.5/1/3/6/10/15/20/30 m

Item no. 80440XXX1

Speaker cables in various lengths with Neutrik plug NL4FX. 4 x 4 sq mm, each wire 224 x 0.15 copper, diameter 11 mm, weight 273 g / m. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.

speakON adapter

Item no. 999654669

Adapter to connect two speaker cables.
