Info
- 1 x 21" bass reflex subwoofer
- Compact, precise and powerful
- Speakon sockets in front grille for optimal cabling of cardioid bass arrays
- Crosslink OUT
- Dual-gap technology
The Voice-Acoustic Paveosub-121 is a very compact and lightweight 21" subwoofer in the format of conventional 18" subs. Equipped with an 21" neodymium transducer, the Paveosub is capable of producing a high and undistorted low-frequency level from the smallest dimensions.
The lang excursion transducer of the latest technology has four voice coils on a 4.5" coil former, which are highly thermally resistant with a continuous power of 1800 watts and a peak output of 7200 watts. Here, the voice coil wire is wound on both the inside and outside of the voice coil former and can dissipate its heat to both sides over a larger surface area that would correspond to a 6" coil. Together with a dual-gap motor structure of the magnet system, this results in the lowest power compression in this power dass. The result is consistently high efficiency and effective transformation of the amplifier energy.
The Dual-Gap technology, with two axially separated magnet systems, also creates an extremely symmetrical drive, whereby the chassis retains its power even at very high cone excursions and has the lowest distortion of all 21" woofers. The result is an extremely clean, punchy and accurate low-frequency response that meets even the highest sonic demands. The Paveosub-121 can therefore also be coupled to smaller mid-high systems without the need for a second way in the low frequency range. The large bass reflex port ensures the best possible efficiency and prevents disturbing flow noise right up to the limit. Many bracings and struts eliminate cabinet resonances, increase backward damping and make the Paveosub-121 extremely robust and an ideal touring subwoofer.

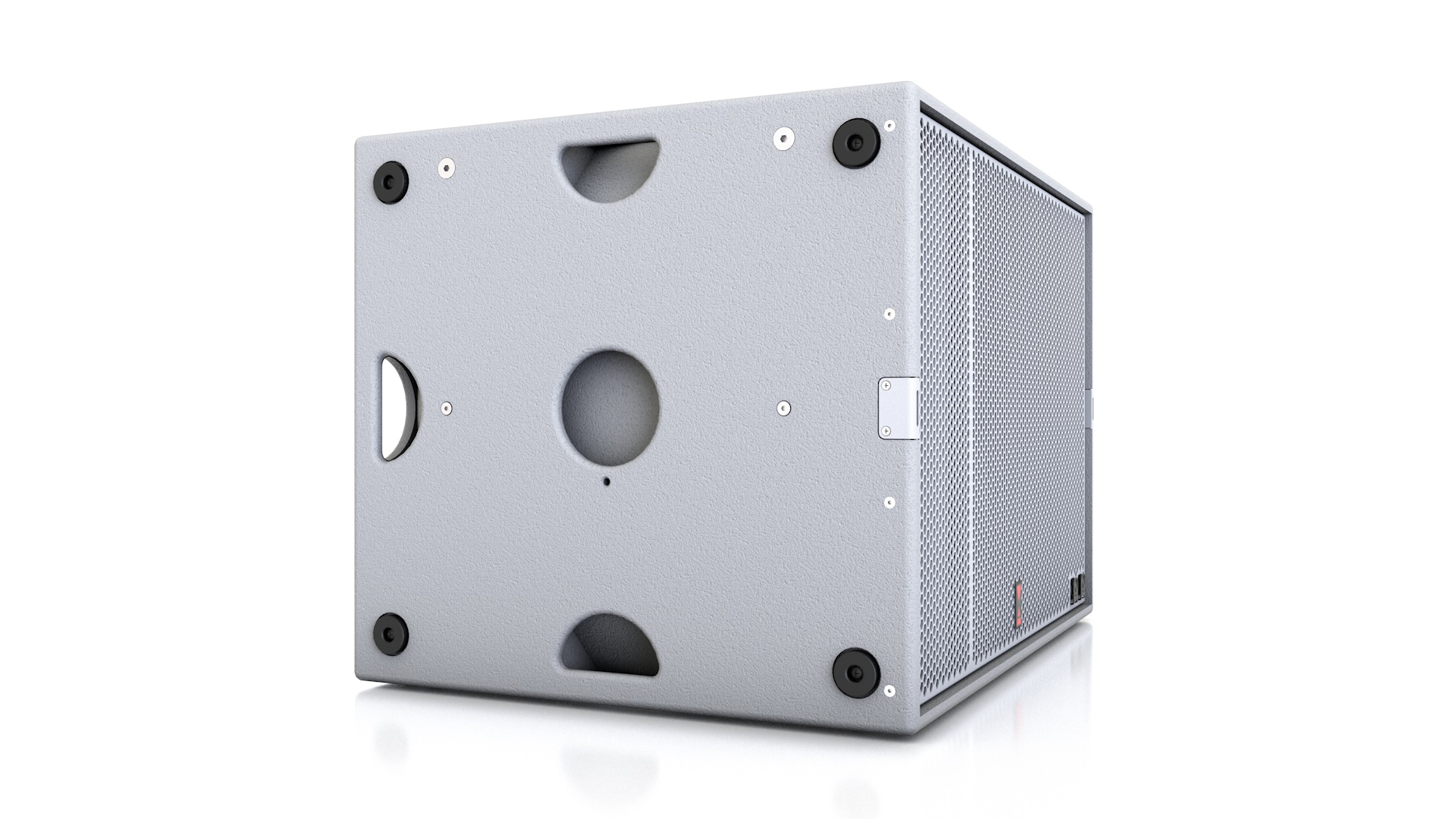

The 8 optimised handles with water drainage on all sides ensure easy, back-friendly handling during transport and stacking. The Paveosub can be used lying flat or standing upright. lt has feet on two sides with opposing stacking moulds and two M20 spacer rod flanges.
The Paveosub-121 is the world's smallest and lightest 21" subwoofer on the market. With a height of only 54cm, it fits under 60cm platforms. Its compactness allows it to be integrated inconspicuously into installations. With a width and depth of only 78 x 58 cm, it takes up the dimensions of half a Europallet when laid flat on a dolly. Thus, 8 subwoofers stacked on two rolldollies can be transported on the truck size of a pallet (120x80). The reduction in weight and size of the enclosure provides greater flexibility in the application of this sub system, which can be widely scaled from small events to large stadiums. In addition, logistics costs in the touring sector are drastically reduced.

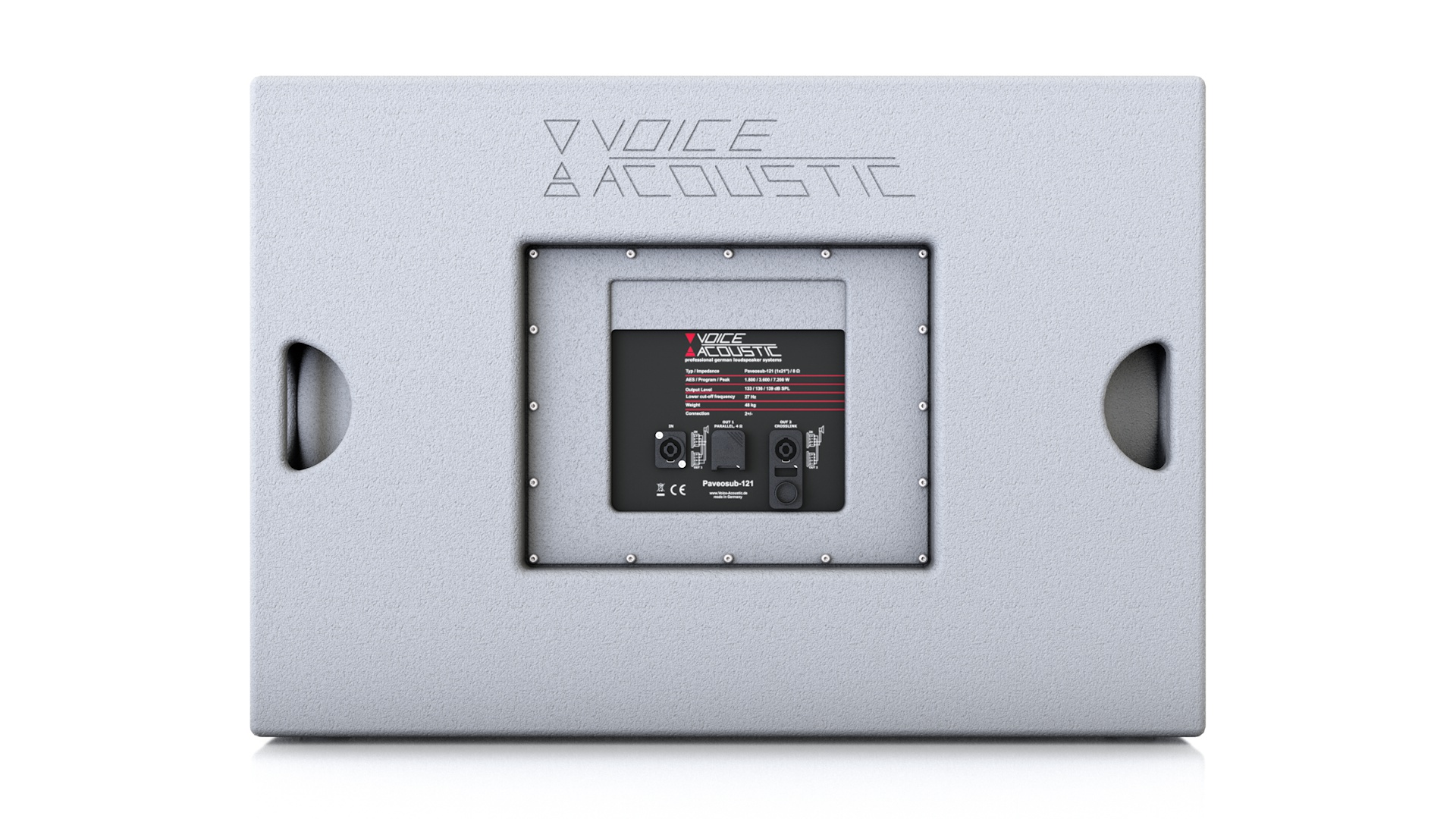

The rear connection panel has two all-pole looped-through IN/OUT Speakon sockets for parallel operation and a third Crosslink OUT socket for connecting additional subwoofers on a separate amplifier channel. This way, two amplifier channels can be transmitted via a 4-pole Speakon cable and no reversible cable or Speakon split is necessary. Ideal for quick setup and cabling of larger bass arrays or for cardioid settings.
In the sturdy speaker grille, there are also two additional Speakon sockets. These are used for front wiring when the sub is placed under stages or for connecting inverted subs in cardioid bass arrays. The connection sockets in the grille as weil as the loop-through socket at the rear are protected against moisture with rubber caps. Extensive accessories such as flying mechanics, protective cover, front roll er board, roller dolly for vertically stacked basses, roller dolly for horizontally stacked basses, covers for stack on roller dolly with 2-4 subs, levelling outriggers for roller dolly and so on round off the Paveosub-121 as a high-performance all-round subwoofer.
Technical Data
Drivers
1 x 21" Neodym long excursion woofer with 4,5" voice coil, dual gap
Lower cut-off frequency
27 Hz (- 10 dB)
36 Hz (- 3 dB)
Impedance
8 Ω
Powerhandling (AES / Program/ Peak)
1.800 W / 3.600 W / 7.200 W
Sensitivity 1 W/1 m
100 dB SPL (half space)
Sound pressure at (AES / Program/ Peak)
133 dB SPL / 136 dB SPL / 139dB SPL
Connection
5 x NEUTRIK NL4, 4 x IN/OUT 2+/2-, 1x Crosslink OUT
Finish
Polyurea coating in RAL 9005. Special colours also possible with Warnex textured paint
Dimensions / Weight
540 (H) x 780 (W) x 580 mm (D) / 48 kg
Accessoires
Detachable wheelboard Paveosub-121
Item no. 501214000
Detachable wheelboard to mount on Paveosub-121/121sp, 15 mm wood with polyurea coating, stackable, 2 butterfly locks, 2 handles, 4 black wheels, engraved logo.
DANTE-Interface 4CH
Item no. 319700043
DANTE Interface 4CH, 4 x analog inputs, 1 x 4CH DANTE output on Ethercon RJ45. Can be used to convert 4 analog signal inputs into DANTE and feed them via one CAT cable into the DANTE capable self-powered subs or HDSP amplifiers. This saves the user wiring and allows all 4 signal inputs of the DSP to be used. Power can be supplied via PoE or optional 12V standard power supply.
Flying plate Paveosub-115/-118/-121
Item no. 409993011-9005
Set of 2 flying plates and screwes for Paveosub-115/-118/-121. Mounted with M10 screws at the side thread points with integrated steel brackets of the subwoofer cabinet (from model year 2022). The upper row of holes allows the subwoofer to be rigged with clamps to a 29cm or 40cm truss, to be suspended with ring eyelets or to be mounted directly in ceilings with heavy-duty dowels.
Flight connectors Paveosub-118/-121
Item no. 409993021-9005
Set of 4 connectors and screws for suspending the Paveosub-118/-121 subs among each other. The load suspension is steel-in-steel with M10 screws.
Ground stacking truss plate 45 cm
Item no. 401808450-9005
Ground stacking truss plate 45 cm made of aluminium black powder-coated, can be fixed on subs with an M20 screw and lashing straps. Can be used with additional M10 half truss cones for F23/24, F33/34, F44 truss, e.g. to bring tops or small and medium-sized line arrays (IK-6, IK-8) up to height.

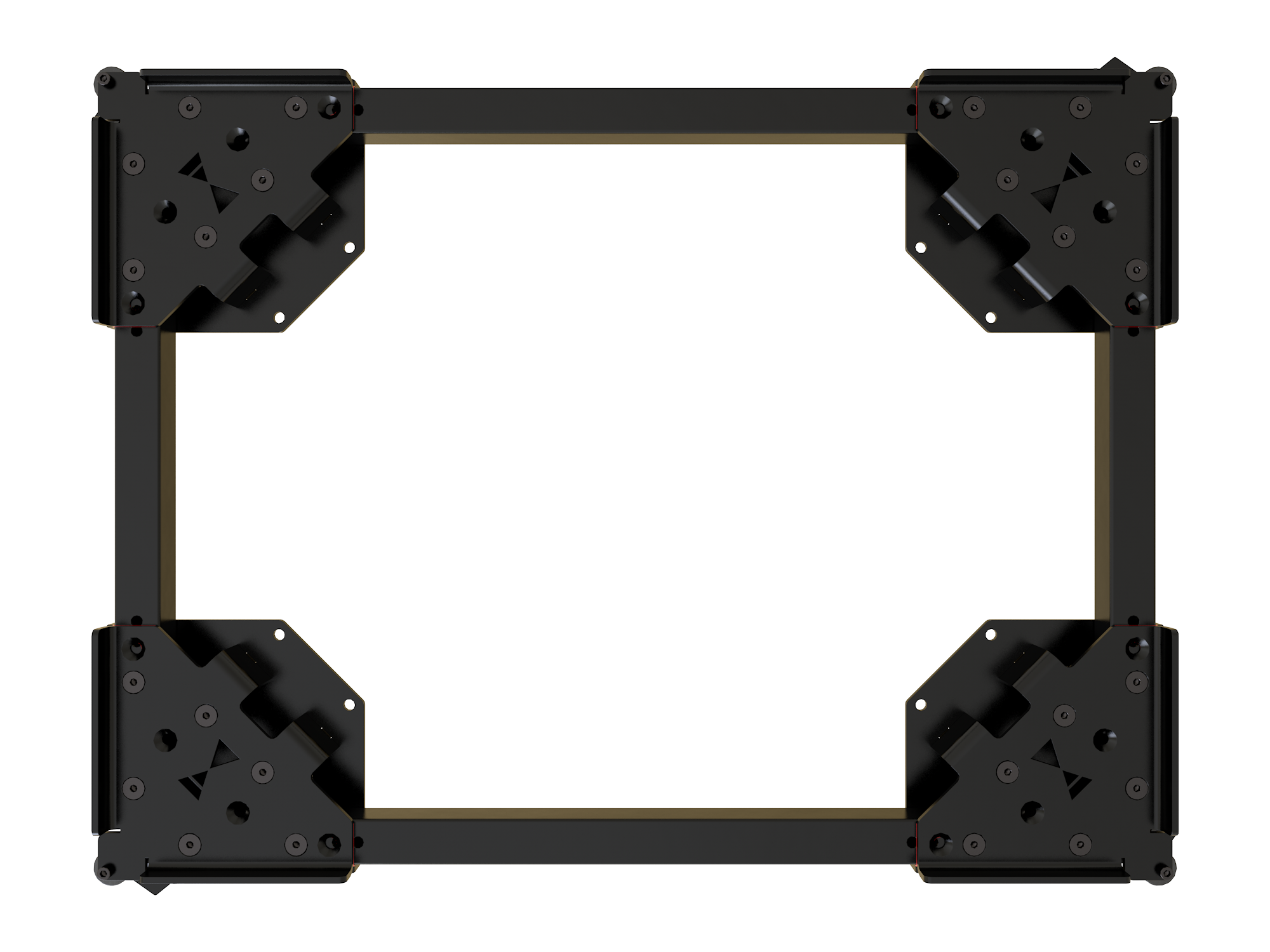

Rolldolly Paveosub-121 horizontal
Item no. 501218400
Rolldolly Paveosub-121 horizontal, for 3x subs stacked side by side and max. 3 lines
on top of each other (12 subs), 4 x black wheels 100 x 36 mm with brakes. Optional plug-in outriggers can be inserted in the corners and adjusted in depth and height, e.g. to stabilize a ground stacked PA and to level it on uneven ground.
Rolldolly Paveosub-121 vertical
Item no. 501218300
Rolldolly Paveosub-121 vertical, for up to 4 x stacked subs, 4 x black wheels 100 x 36 mm with brakes. Optional plug-in outriggers can be inserted in the corners and adjusted in depth and height, e.g. to stabilize a ground stacked PA and to level it on uneven ground. Also ideal as a stage trolley for quickly repositioning of EDM/drum monitoring with a Paveosub-121 and CXN-12/16 on top.
Rolldolly outrigger
Item no. 509994050
Rolldolly outrigger, insertion depth and height can be leveled, incl. Quick-Lock-Pin (must be fixed to the dolly).
Castor heavy-duty
Item no. 504558000
Transport castor heavy-duty for converting Rolldolly. Braked 160 mm swivel castor with ball bearing mounted aluminum rim and 50 mm wide wheel tread. Easier to push on grass. Load capacity 300 kg, incl. screws.
Carrying bag big for 2 x speaker stand/ rod
Item no. 999920000
Carrying bag big, for 2 x speaker stands/speaker rods or Rolldolly outrigger, 1.200 x 190 x 290 mm.
Distance rod with crank type 213/40
Item no. 999921340
M20 Crank speaker rod type 213/40 with Ring-Lock function for clearance-free mounting in the speaker flange, high 920 - 1.520 mm, max. 35 kg load.
Telescopic rod type 213/68
Item no. 999921368
M20 Telescopic speaker rod type 213/68 extra high with Ring-Lock function for clearance-free mounting in the speaker flange, high 1.100 - 1.800 mm, max. 35 kg load.
Telescopic rod type 213/37
Item no. 999921337-9010
M20 Telescopic speaker rod type 213/37 (white), high 905 - 1.450 mm, max. 35 kg load.
Telescopic rod type 246/26 black
Item no. 999924626-9005
M20 Telescopic speaker rod type 246/26 super high (black), high 1.400 - 2.400 mm, max. 30 kg load.
Telescopic rod type 246/26 white
Item no. 999924626-9010
M20 Telescopic speaker rod type 246/26 super high (white), high 1.400 - 2.400 mm, max. 30 kg load.
Carrying bag long
Item no. 999924609
Carrying long, für 2 x telescopic speaker rod type 246/26, 120 x 19 x 29 cm, 1.420 x 200 x 140 mm.
Adapter with Ring-Lock function
Item no. 999921441
Stand adapter with Ring-Lock function, e.g. for speaker stand type 213 or distance rod type 246/26. The ring-lock function ensures a clearance-free fit in the speaker's high stand flange.
M20 Adapter 250 mm
Item no. 999921329
The 250 mm long adapter is perfectly suited as a M20 single rod or as an extension rod.
Speaker rod short type 214/47
Item no. 999921447
M20 M20 speaker rod short type 214/47 with Ring-Lock function, height 250 mm, max. 35 kg load, e.g. for tops in vertically high ground stacks on subwoofers.
Cable Clip for speaker stand/ rod
Item no. 999935000
The cable clip made of robust, durable ABS plastic is specially designed for speaker stands and distance rods with 35 - 36 mm tube. It adheres firmly to the tube and holds the cables securely and neatly in the 24 x 16 mm guide accessible from the outside.
speakON cable 0.5/1/3/6/10/15/20/30 m
Item no. 80440XXX1
Speaker cables in various lengths with Neutrik plug NL4FX. 4 x 4 sq mm, each wire 224 x 0.15 copper, diameter 11 mm, weight 273 g / m. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.
speakON adapter
Item no. 999654669
Adapter to connect two speaker cables.
XLR signal cable 0,5/3/6/10/15/20/30/50 m
Item no. 80205XXX5
XLR signal cable in different lengths, SC Primus 2 x 0,5 mm² made of 28 x 0,15 Ø copper strands, 100 % shielding due to dense copper spiral turner and metallised fleece, Neutrik NC3MXX-B/NC3FXX-B plugs, gold-plated contacts, black plug housing.
powerCON TRUE1-TOP 3/6/10/15/20/30/50 m
Item no. 80325XXX3
Titanex H07RN-F 3 x 2.5 sq mm cable in various lengths.The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance. With Neutrik powerCON TRUE1 - NAC3FX-W-TOP and NAC3MX-W-TOP device connectors.
powerCON TRUE1-TOP-Schuko 3/6/10/15/20/30/50 m
Item no. 80325XXX2
Titanex H07RN-F 3 x 2.5 sq mm cable in various lengths.The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance. With Neutrik powerCON TRUE1 - NAC3FX-W-TOP and Schuko device connectors.
