Info

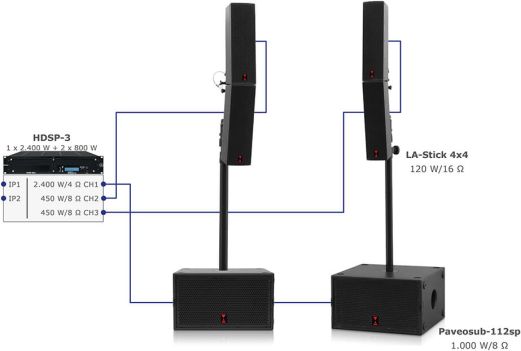

The HDSP-3 system power amplifier is the heart of the Score-5 Plug & Play Satellite System. The system is ‘Plug and Play’. Plug it in, and it is ready for use. All components are matched, adjusted and limited via the integrated speaker management system (DSP). The sound is synchronised right away, without having to make further adjustments.
Experienced technicians and professional audio operator can still alter the functions and have access capabilities to the DSP settings. Access to almost all parameters without PC control can be made using the Display buttons and encoder wheel. The functions can be password protected obviating unauthorized interference. Complex configurations can be comfortably created via the Ethernet, or USB interface on the PC surface, using the VA-Remotecontrol software for PC and Mac. Individual sound ideas and alterations can be saved as presets and recalled at any time.
The development of the LA-Stick 4x4 has made it possible to adapt this technology into a column format, incorporating many of the advantages found in a functioning line-array into compact dimensions, making it so much more user friendly. Not a column speaker but a line-array stick! Not only that, but just as with the large line-arrays, the LA-stick boasts a trapezoid-shaped base and top with an 8° slope.
The inclination angle can be externally fine-tuned via a newly developed, innovative ball-bearing-mounted spindle mechanism on the back panel. This very sturdy mechanism renders the bending joints in ball-lock-pin form on the front side of the loudspeaker unnecessary. No mechanism or mounting parts are visible on the front side. With this discreet look it is easy to integrate and use the loudspeaker in each sophisticated ambiance.
The Paveosub-112 is a very compact bass reflex subwoofer. With a height of only 30 cm it is the lowest 12" bass worldwide and can be used where high sound pressure level and depth is required in a very small space. The bass can be used lying flat, or standing upright with a spacer rod.
The possibility of splitting, extension, scaling, ease of use and comprehensive, well thought out accessories complete the SubSat-LA Set and make it a universal PA tool with a very wide range of applications.
Accessoires
Carrying bag for LA-Stick 4x4 and 8x4
Item no. 500442000
Carrying bag for up to two LA-Stick 4x4 with angular mechanics or one LA-Stick 8x4. Including insertable partition, if you want to carry the LA-Sticks without angle mechanism separately.
Heavy-Duty Flightcase for LA-Stick 4x4 and 8x4
Item no. 500443000
Heavy-Duty Flightcase for up to four LA-Sticks 4x4 included angle mechanism or two LA-Stick 8x4. 2 internal 90°rolls, 2 large Butterflys, 6 large folding handles, 7 mm wood with black and scratch-resistant surface, stable 35 x 35 mm edge profile with 2.5 mm thickness and 5 mm outer radius and recessed grooved rivet, truck pack size. Case can be run like a suitcase trolley. Dimensions/Weight: 172 (h) x 590 (w) x 991 mm (d) / 15,8 kg.
U-mounting bracket LA-Stick
Item no. 400441001
Stable swivel bracket for installation on trusses and ceiling. Is also used by several LA sticks to mount directly to a subwoofer without spacer bar.
Spindle mechanics LA-Stick
Item no. 400443001
The inclination angle can be externally fine-tuned via ball-bearing-mounted spindle mechanism. This very sturdy mechanism renders the bending joints in ball-lock-pin form on the front side of the loudspeaker unnecessary.
Tilt Adapter for LA-Stick
Item no. 4004450X1
Tilt adapter for connecting and aligning the speakers to each other instead of the spindle mechanics. The four adapters each have a fixed angle of 0°, 4° and 8° degrees and are attached with the speakers in the back existing M6 and M10 screws.
Inclinable Stand Adapter
Item no. 999919780
With this adapter you can attach speakers without built-in flange on stands or wall brackets and adjustable up to 30 ° in the tilt.
Fly-Mechanics LA-Stick
Item no. 400444001
Tool-free flight-mechanics for exact alignment of the La-Stick in the horizontal and vertical axis.
Universal suspension device for flight mechanics
Item no. 409992001
For suspending speakers from very high ceilings or trusses. Prevents speakers from twisting due to two parallel steel cables or chains and allows horizontal alignment due to central pivot axis. Suitable for Easyfly mechanics, LA-Stick flying mechanics, Ikarray-8 flying mechanics and all U- and C-brackets. Delivery without further mounting accessories.
Wallholder for LA-Stick 4x4
Item no. 999908131
Wallholder for LA-Stick 4x4, for hanging on the M10 thread from the top. Alignment in both axes.
Speaker ceiling mount
Item no. 999924496
Robust and useful loudspeaker ceiling mount with 250 mm distance and internal cable management. The swivel area is +/-45 °. Within the parameters - the settings range from 0 to 45°. Max. load capacity: 25 kg. Available in white and black.
Tilting and swivelling wall holder
Item no. 999924481
Wall holder with large wall plate for heavy boxes. The mounted box can be swivelled sideways and tilted up to 30 °. Easy installation due to practical mounting and screwing. Max. load capacity: 25 kg. Available in white and black.
Wall mount with extension
Item no. 409994031
Wall mount with extension (180° horizontal and 30° vertical adjustment) for parallel positioning. Max. Load capacity: 25 kg. Available in white and black.
Tilting and swivelling wall holder XL
Item no. 999924120
Stable wall holder with tilt and swivel orientation: 180° horizontal, 22° vertical adjustable in 11 steps. Expanding mandrel for play-free seating in the tripod base of the speaker. Max. load capacity: 50 kg.
Wall- and Trussholder
Item no. 999924150
Wall- and Trussholder with a joint and a tube clamp, circa 520 mm long. Max. load capacity: 50 kg.
Truss clamp
Item no. 999981201
With this traverse clamp you can easily and loosely mount your devices to all common traverses with 48-51 mm strap tubes. The clamp impresses with its compact design, its lightness and the maximum tensile load of 100 kg. Locking screw M8 Wing nut and device screw M10.
Eye Bolt
Item no. 999917370
M10 x 40 mm eye bolt is screwed into rearward mounting point and the speaker can also be secured directly to the housing with a safety cable.
Screwable quick connect
Item no. 999908000
Screwable quick connect member for e.g. single and double stud fittings or safetys.
Safety 6/1000
Item no. 999963100
1 m safety cable 6 mm Ø for securing a suspended loudspeaker. One side with a screwable quick connect.
Speaker stand crank
Item no. 999921300
Stable stand for cranking with double protection against falling. Height: 139 to 218 cm. Max. load capacity: 50 kg.
Speaker stand
Item no. 999921467
Stable stand with expanding mandrel system which provides a tight and firm fit for the speaker. Double protection against falling. Height: 132 - 220 cm. Max. load capacity: 50 kg.
Distance rod with crank
Item no. 999921340
Distance rod for cranking with expanding mandrel system which provides a tight and firm fit for the speaker. Height: 92 - 152 cm. Max. load capacity: 50 kg.
Telescopic rod
Item no. 999921368
Telescopic rod with expanding mandrel system for play-free seating in the tripod base. Height: 110 to 180 cm. Max. load capacity: 35 kg.
Ring-Lock adapter
Item no. 999921441
Adapter for mounting on stands or speaker rods. With Expanding mandrel system which provides a tight and firm fit for the speaker.
Iron base with weight plate
Item no. 999912311
The set includes a flat 10 kg iron base Ø 45 and a 5 kg weight disc. It is suitable distance rods with an M20 screw thread. The weight disc can be mounted tool-free.
Carrying bag for round base Ø 45 cm
Item no. 999912399
Padded bag made of robust, water-repellent nylon, with space for a round base Ø 45 cm with weight disc. The bag has two carrying straps with a soft velcro handle, a sturdy zipper and a transparent window for labels.
Iron base
Item no. 999926705
The iron base 55 x 55 cm has a carrying handle and a cable bushing. The base is suitable distance rods with an M20 screw thread. Weight: 13,5 kg.
Carrying bag for iron base
Item no. 999933100
Padded bag made of robust, water-repellent nylon, with space for a iron base 55 x 55 cm. The bag has a padded handle and a stable zipper.
Carrying bag for 2 x speaker stand/ rod
Item no. 999920000
Carrying bag for two speaker stands or distance rods, also with crank. Two inside compartments with zipper and sturdy handles. Material waterproof nylon.
Cable Clip for speaker stand/ rod
Item no. 999935000
The cable clip made of robust, durable ABS plastic is specially designed for speaker stands and distance rods with 35 - 36 mm tube. It adheres firmly to the tube and holds the cables securely and neatly in the 24 x 16 mm guide accessible from the outside.
Transport cover Paveosub-112
Item no. 501121000
Transport cover for Paveosub-112/112sp made of stable Codura fabric with padding. The handles are cut out.
Detachable wheelboard Paveosub-112
Item no. 501124000
Detachable wheelboard to mount on Paveosub-112/112sp, 15 mm wood with polyurea coating, stackable, 2 butterfly locks, 2 handles, 4 black wheels, engraved logo.
speakON cable 0.5/1/3/6/10/15/20/30 m
Item no. 80440XXX1
Speaker cables in various lengths with Neutrik plug NL4FX. 4 x 4 sq mm, each wire 224 x 0.15 copper, diameter 11 mm, weight 273 g / m. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.
speakON adapter
Item no. 999654669
Adapter to connect two speaker cables.
PD-32-6 V2 TRUE1
Item no. 999492020
19"/3 HE intelligent 32A power distributor, suitable for applications in temporary and permanent installations. 32 A CEE Input, 6 x Schuko Output in parallel 6 x Neutrik powerCON TRUE1 Output, 1 x 16 A CEE, 6 x independent circuits (RCBO) and precise multi meter.
PD-32-6 V2 powerCON
Item no. 999492010
19"/3 HE intelligent 32A power distributor, suitable for applications in temporary and permanent installations. 32 A CEE Input, 6 x Schuko Output in parallel 6 x Neutrik powerCON Output, 1 x 16 A CEE, 6 x independent circuits (RCBO) and precise multi meter.
PD-32-6 V2 Multipin
Item no. 999492030
19"/3 HE intelligent 32A power distributor, suitable for applications in temporary and permanent installations. 32 A CEE Input, 6 x Schuko and 1 x Multipin ILME 16 pol. Output, 1 x 16 A CEE, 6 x independent circuits (RCBO) and precise multi meter.
BAGAX 2HE/19" SDS Stack-Rack
Item no. 9B1910002
SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 156 x 600 x 600 mm.
BAGAX 3HE/19" SDS Stack-Rack
Item no. 9B1910003
SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 201 x 600 x 600 mm.
BAGAX 4HE/19" SDS Stack-Rack
Item no. 9B1910004
SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 225 x 600 x 600 mm.
BAGAX 6HE/19" SDS Stack-Rack
Item no. 9B1910006
SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 336 x 600 x 600 mm.
BAGAX 2HE/19"/ED SDS Stack-Rack
Item no. 9B1920002
ED SDS Stack-Rack (Extra Deep Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 156 x 600 x 780 mm.
BAGAX 4HE/19"/ED SDS Stack-Rack
Item no. 9B1920004
ED SDS Stack-Rack (Extra Deep Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 225 x 600 x 780 mm.
BAGAX 6HE/19"/ED SDS Stack-Rack
Item no. 9B1920006
ED SDS Stack-Rack (Extra Deep Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 336 x 600 x 780 mm.
BAGAX Wheelboard for ED SDS & SDS Stack-Racks
Item no. 9B1940000
Wheelboard for ED SDS and SDS stack rack system. With stacking trays and locking system. 4 x blue wheels (two with brakes). Load capacity 450 kg.
Schuko V6 3/6/10/15/20 m
Item no. 80325XXX4
Schuko 6-fold junction with Titanex H07RN-F 3 x 2,5 sq mm cable in various lengths. The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.
XLR signal cable 0,5/3/6/10/15/20/30/50 m
Item no. 80205XXX5
XLR signal cable in different lengths with Neutrik connectors NC3FXX-B and B-NC3MXX, black housing and gold-plated contacts. Large wire diameter of 2 x 0,5 sq mm with 28 x 0.15 sq mm copper per core, 100 % shielding due to dense copper spiral turner and metallised fleece.
powerCON TRUE1-TOP 3/6/10/15/20/30/50 m
Item no. 80325XXX3
Titanex H07RN-F 3 x 2.5 sq mm cable in various lengths.The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance. With Neutrik powerCON TRUE1 - NAC3FX-W-TOP and NAC3MX-W-TOP device connectors.
powerCON TRUE1-TOP-Schuko 3/6/10/15/20/30/50 m
Item no. 80325XXX2
Titanex H07RN-F 3 x 2.5 sq mm cable in various lengths.The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance. With Neutrik powerCON TRUE1 - NAC3FX-W-TOP and Schuko device connectors.
