Info

  • 1 x 15" compact bass reflex subwoofer
  • World's flattest 15" bass with only 36 cm height
  • Horizontal and vertical usable
  • Additional Speakon plugs in the grille for front connection

The Paveosub-115 is a very compact bass reflex subwoofer for universal applications.

With its low profile of only 36 cm and a width and depth of only 54 x 57 cm, the bass is ideal for fixed installations where a discreet appearance is required and the loudspeakers need to be integrated into the architecture as unobtrusively as possible.

In mobile use, the Paveosub-115 saves a lot of space and weight with a transport volume of only 110 litres. The two large handles can take hold from all sides and are located at the centre of gravity.

A removable and stackable front wheel board is available as an accessory for easy handling of the subwoofer, which weighs only 27 kg. The optional transport protective cover also can be used as weather protection at outdoor events.

The Paveosub-115 is equipped with a newly developed neodymium transducer with 4" voice coil that can handle 1.200 W AES. The magnet system has three demodulation rings for particularly low distortion. Massive cooling fins ensure low power compression at maximum performance. Together with a high linear excursion and a low moving mass, the subwoofer offers deep, powerful and at the same time very precise bass reproduction.

Internal bracing ensures maximum stability and prevents unwanted cabinet resonances.

The Paveosub-115 can be connected from the front via two Speakon plugs on the front side of the grille, for example to use under stage podiums or in cardioid applications. To protect against dirt and moisture, the Speakons are covered with undetachable rubber caps.

The subwoofer can be used flat or upright. On two sides there are stacking moulds, rubber feet and M20 flanges for flexible use with an attractive appearance, depending on the combined satellite loudspeakers. Standing upright, the Paveosub forms a very slim silhouette.

The stacking moulds on the top of the sub are in the same foodprint as the CXN-16 stage monitor. In addition, both loudspeakers have a width of 54 cm and thus form an elegant optical unit and are a professional set for drum or DJ monitoring, for example. A self-powered Paveosub-115sp can power a CXN-16 bi-amping in half-powered mode.

The Paveosub-115 can also be converted at the factory to the self-powered version with 3-channel 4 kW power amplifier module and DSP board.

Control

The woofer is in 8 Ω. The Paveosub-115 is powered by one channel (2.400 W/4 Ω) of HDSP-6, HDSP-4 or HDSP-3 nominal impedance is 4 Ω.

HDSP-Amplifiers contain presets to combine subwoofers with Voice-Acoustic tops. There are also presets for cardioid and bass-array application. One HDSP-6 or HDSP-4 can power up to four, one HDSP-3 up to two Paveosub-115.

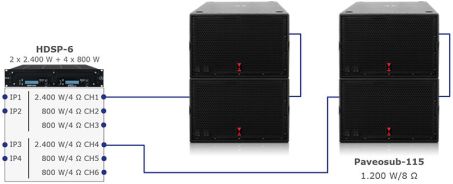

Paveosub-115 via HDSP-6
Paveosub-115 via HDSP-6

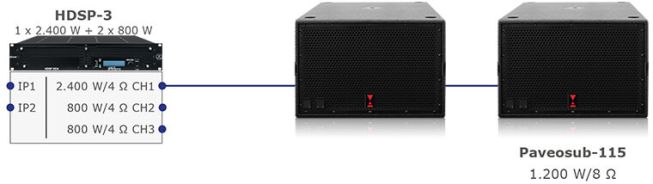

Paveosub-115 via HDSP-3
Paveosub-115 via HDSP-3

Technical Data

Drivers
1 x 15" Neodym long excursion woofer with 4" voice coil

Lower cut-off frequency
34 Hz (- 10 dB)
45 Hz (- 3 dB)

Impedance
8 Ω active separated

Powerhandling (AES / Program / Peak)
1.200 W / 2.400 W / 4.800 W

Sensitivity 1 W/1 m
98 dB SPL (half space)

Sound pressure at (AES / Program / Peak)
129 dB SPL / 132 dB SPL / 135 dB SPL

Connection
4 x NEUTRIK NL4 IN/OUT 2+/-

Finish
Polyurea coating in RAL 9005. Special colours also possible with Warnex textured paint

Dimensions / Weight
360 (H) x 540 (W) x 570 mm (D) / 27 kg

Downloads

Accessoires

Detachable wheelboard Paveosub-115

Item no. 505114000

Detachable wheelboard to mount on Paveosub-115/115sp, 15 mm wood with polyurea coating, stackable, 2 butterfly locks, 2 handles, 4 black wheels, engraved logo.

SP-Kit Paveosub-sp-8K4

Item no. 249108402

SP-Kit Paveosub-sp-8K4, self-powered electronic unit for retrofitting existing or used Paveosubs GEN2025 to self-powered., IN/OUT: 2 x analog, 2CH digital AES3, 8.000W, 4x 2.000W, incl. 6 m Schuko/powerCON TRUE1 cable.

SP-Kit Paveosub-sp-8K4D

Item no. 249108403

SP-Kit Paveosub-sp-8K4, self-powered electronic unit for retrofitting existing or used Paveosubs GEN2025 to self-powered., IN/OUT: 2 x analog, 2CH digital AES3, 8.000W, 4x 2.000W, incl. 6 m Schuko/powerCON TRUE1 cable.

Flying plate Paveosub-115/-118/-121

Item no. 409993011-9005

Set of 2 flying plates and screwes for Paveosub-115/-118/-121. Mounted with M10 screws at the side thread points with integrated steel brackets of the subwoofer cabinet (from model year 2022). The upper row of holes allows the subwoofer to be rigged with clamps to a 29cm or 40cm truss, to be suspended with ring eyelets or to be mounted directly in ceilings with heavy-duty dowels.

Flight connectors Paveosub-115

Item no. 409993031-9005

Set of 4 connectors and screws for suspending the Paveosub-115 subs among each other. The load suspension is steel-in-steel with M10 screws.

Rolldolly Paveosub-115 vertical

Item no. 501158300

Rolldolly Paveosub-115 vertical, for up to 4 x stacked subs, 4 x 100 x 36 mm black wheels with brakes. Optional plug-in outriggers can be inserted in the corners and adjusted in depth and height, e.g. to stabilize a ground stacked PA and to level it on uneven ground. Also ideal as a stage trolley for quickly repositioning of EDM/drum monitoring with a Paveosub-115 and CXN-12/16 on top.

Rolldolly outrigger

Item no. 509994050

Rolldolly outrigger, insertion depth and height can be leveled, incl. Quick-Lock-Pin (must be fixed to the dolly).

Castor heavy-duty

Item no. 504558000

Transport castor heavy-duty for converting Rolldolly. Braked 160 mm swivel castor with ball bearing mounted aluminum rim and 50 mm wide wheel tread. Easier to push on grass. Load capacity 300 kg, incl. screws.

Carrying bag big for 2 x speaker stand/ rod

Item no. 999920000

Carrying bag big, for 2 x speaker stands/speaker rods or Rolldolly outrigger, 1.200 x 190 x 290 mm.

Distance rod with crank type 213/40

Item no. 999921340

M20 Crank speaker rod type 213/40 with Ring-Lock function for clearance-free mounting in the speaker flange, high 920 - 1.520 mm, max. 35 kg load.

Telescopic rod type 213/68

Item no. 999921368

M20 Telescopic speaker rod type 213/68 extra high with Ring-Lock function for clearance-free mounting in the speaker flange, high 1.100 - 1.800 mm, max. 35 kg load.

Telescopic rod type 213/37

Item no. 999921337-9010

M20 Telescopic speaker rod type 213/37 (white), high 905 - 1.450 mm, max. 35 kg load.

Telescopic rod type 246/26 black

Item no. 999924626-9005

M20 Telescopic speaker rod type 246/26 super high (black), high 1.400 - 2.400 mm, max. 30 kg load.

Telescopic rod type 246/26 white

Item no. 999924626-9010

M20 Telescopic speaker rod type 246/26 super high (white), high 1.400 - 2.400 mm, max. 30 kg load.

Carrying bag long

Item no. 999924609

Carrying long, für 2 x telescopic speaker rod type 246/26, 120 x 19 x 29 cm, 1.420 x 200 x 140 mm.

Adapter with Ring-Lock function

Item no. 999921441

Stand adapter with Ring-Lock function, e.g. for speaker stand type 213 or distance rod type 246/26. The ring-lock function ensures a clearance-free fit in the speaker's high stand flange.

M20 Adapter 250 mm

Item no. 999921329

The 250 mm long adapter is perfectly suited as a M20 single rod or as an extension rod.

Speaker rod short type 214/47

Item no. 999921447

M20 M20 speaker rod short type 214/47 with Ring-Lock function, height 250 mm, max. 35 kg load, e.g. for tops in vertically high ground stacks on subwoofers.

Cable Clip for speaker stand/ rod

Item no. 999935000

The cable clip made of robust, durable ABS plastic is specially designed for speaker stands and distance rods with 35 - 36 mm tube. It adheres firmly to the tube and holds the cables securely and neatly in the 24 x 16 mm guide accessible from the outside.

speakON cable 0.5/1/3/6/10/15/20/30 m

Item no. 80440XXX1

Speaker cables in various lengths with Neutrik plug NL4FX. 4 x 4 sq mm, each wire 224 x 0.15 copper, diameter 11 mm, weight 273 g / m. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.

speakON adapter

Item no. 999654669

Adapter to connect two speaker cables.
