The HDSP system power amplifier is the heart of the VENIA-8 Plug & Play Sound System. The system is ‘Plug and Play’. Plug it in, and it is ready for use. All components are matched, adjusted and limited via the integrated speaker management system (DSP). The sound is synchronised right away, without having to make further adjustments.

Experienced technicians and professional audio operator can still alter the functions and have access capabilities to the DSP settings. Access to almost all parameters without PC control can be made using the Display buttons and encoder wheel. The functions can be password protected obviating unauthorized interference. Complex configurations can be comfortably created via the Ethernet, or USB interface on the PC surface, using the VA-Remotecontrol software for PC and Mac. Individual sound ideas and alterations can be saved as presets and recalled at any time.

The VENIA-8 is a 2-way bi-amplified column line array loudspeaker, equipped with 4 x 8" drivers and 4 x 1" compression drivers. The high-frequency drivers are coupled to a line array waveguide and produce a dispersion angle of 100° horizontally and 0°/-20° vertically via a large horn.

The Paveosub-118 is a lightweight heavy-vented bass reflex subwoofer. Equipped with a high-quality 18" neodymium chassis, it is capable of producing a high and undistorted low-frequency level from the most compact dimensions. The low moving mass of only 160 grams mms, together with a powerful drive (B/L factor 25), ensures fast and precise signal reproduction with excellent transient response and is sonically superior to many other 18" designs. The chassis features a large and heavy duty 4" voice coil.

The possibility of splitting, extension, scaling, ease of use and comprehensive, well thought out accessories complete the VENIA-8 Set and make it a universal PA tool with a very wide range of applications.

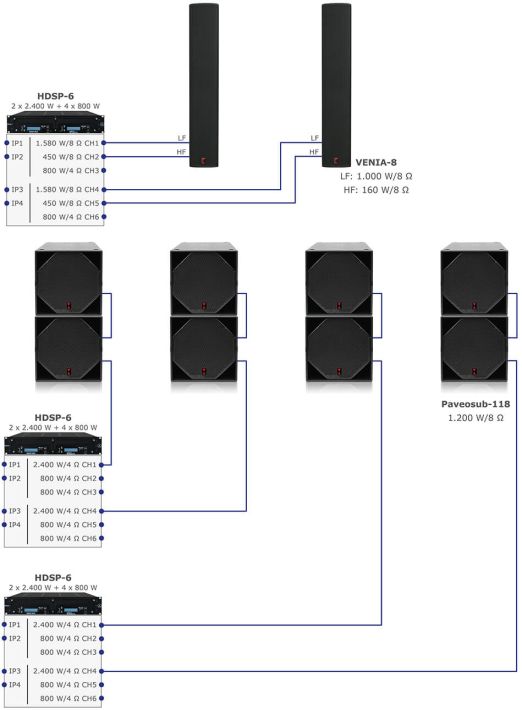

VENIA-8 Set
VENIA-8 Set

Downloads

Accessoires

Flightcase for VENIA-8

Item no. 504803000

Heavy-duty flightcase for up to two VENIA-8 or two X-Tension kits. The VENIA-8 fits into the case with the handles and X-Tension mechanism mounted. 4 Blue Wheels, 2 large butterflys, 8 large folding handles and 4 stacking recesses in the lid. 9,5 mm wood with black and scratch-resistant surface, stable 35 x 35 mm edge profile with 2.5 mm material thickness and 5 mm outer radius and recessed rivet groove. Dimensions/Weight: 1.452 (h) x 585 (w) x 456 mm (d) / 50,0 kg.

Carrying bag for VENIA-8 or X-Tension Kit

Item no. 504802000

Carrying bag for 1 x VENIA-8 or 1 x X-Tension Kit VENIA-6 and VENIA-8. Sturdy Codura fabric with padding. With reinforced double handles and straps, and six reinforced carrying handles on the sides.

Tilting and swivelling wall holder heavy-duty

Item no. 404004001

Wall bracket with large wall plate for heavy loudspeakers. Flat design with small distance between wall and speaker. The mounted speaker can be swiveled sideways and tilted up to 20° in 1° steps. Vertical slippage after adjustment of the tilt angle is eliminated by a hole pattern. Easy installation thanks to practical hanging and screwing. Two truss clamps can be mounted for use on vertical trusses. Max. load capacity 80 kg.

U-bracket for U-bracket for VENIA-8

Item no. 404801001

Stable swivel bracket for installation on trusses and ceiling. 2 x M10 hexagon head screws included in delivery.

C-bracket for VENIA-8

Item no. 404803001

Stable swivel bracket for vertical installation on trusses, walls or columns. 2 x M10 hexagon head screws included in delivery.

Hand lever M10 x 30 mm

Item no. 600781030

Hand lever M10 x 30 mm, adjustable, flat design, steel black burnished with plastic lever, suitable for all U- and C-brackets.

Headstacking connector for VENIA series

Item no. 409999001

Headstacking connector in set of 4. Fits both VENIA column line arrays. For connecting two VENIAs in headstacking.

Headstacking flying equipment for VENIA-8

Item no. 404807001

The headstacking flight equipment is attached to the side walls of the VENIA-8 column line array by means of existing countersunk screws. With receptacle for EasyFly mechanism, ring eyes and self-lock hook.

X-Tension Kit for VENIA-8

Item no. 504807000

The 133.6 cm high X-Tension Kit is inserted between the subwoofer and VENIA-8 to bring the speaker column to a visually appealing height. Connection cables can be elegantly routed through it. The mechanics allow a quick and uncomplicated assembly by means of locking bolts. The X-Tension Kit can be mounted on any subwoofer or steel base plate with M20 threaded mounting. To transport the X-Tension Kit, the carrying bag or the flight case of the VENIA-8 can be used.

Multifunctional steel floor plate

Item no. 920200529

Solid steel base plate in elegant shape. 78 x 78 cm with two M20 flanges for mounting the VENIA X-Tension or two distance rods for e.g. one loudspeaker and one longer light distance rod. 5 x rear countersinks for mounting half-cone truss screw-on connectors to accommodate 3- or 4-point truss. Base plate has 4 floor-saving rubber feet that must be unscrewed when using heavy loads with trusses to prevent the plate from flexing. Large handles allow two hands to grasp each handle cutout. Weight 41.5 kg.

Carrying bag for Multifunctional steel floor plate

Item no. 9B9997878

Sturdy bag made of water-repellent Codura fabric, with space for a multi-function steel base plate 78 x 78 cm. The bag has a padded carrying handle and two handle cutouts. Zippers have not been used because they could be damaged by their own weight when the plate is put down. Instead, the bag is closed with large Velcro fasteners.

Aluminum bracket handle

Item no. 999995651

Bracket handle with screw set for VENIA-6 and VENIA-8. Can be mounted horizontally and vertically at any position on the back panel. The VENIA Heavy-Duty Flightcases and Carrying bags can be used with mounted bracket handles. Height 4.9 cm, length 11.2 cm, width 2 cm, weight 0.077 kg.

Easyfly-mechanics

Item no. 409991001

Tool-free flight-mechanics for clicking and exact alignment of the speaker in the horizontal and vertical axis. Removable recording for example the self-lock clamp included.

Carrying bag for Easyfly-Mechanics

Item no. 409992000

Carrying bag for up to two Easyfly-Mechanics with attached truss clamp plus accessory compartment for e.g. two safetys with single studs.

Self-lock clamp

Item no. 999950731

Loudspeakers can be flown by one person with the self-lock clamp. The clamp hooks directly into the truss and can be easily tightened. Load capacity 250 kg.

Multifunctional rotating ceiling bracket

Item no. 409998001

For hanging speakers from ceilings using steel cables or chains and various accessories. Horizontal alignment due to central pivot axis. Max. load: 60 kg. Available in white and black. Supplied without further mounting accessories.

Universal suspension device for flight mechanics

Item no. 409992001

For suspending speakers from very high ceilings or trusses. Prevents speakers from twisting due to two parallel steel cables or chains and allows horizontal alignment due to central pivot axis. Suitable for Easyfly mechanics, LA-Stick flying mechanics, Ikarray-8 flying mechanics and all U- and C-brackets. Delivery without further mounting accessories.

Wall console for flight hardware

Item no. 409994901

Wall mount bracket made of steel with aluminium tube for hanging loudspeakers on walls by using truss clamps and loudspeaker-specific flying hardware. The outriggers of the wall bracket have a row of holes so that the truss clamps, which hold the aluminium tube, can be repositioned. This allows the distance between the speakers and the wall to be varied. All components are black powder-coated. Delivery includes: 2 x wall console, 2 x truss clamps, 1 x 600 mm aluminium tube 50 x3 mm, 2 x plastic caps for the tube. Max. load 75 kg, static calculation available.

Single stud

Item no. 999957450

Single stud for securing a loudspeaker with safety cable.

Screwable quick connect

Item no. 999908000

Screwable quick connect member for e.g. single and double stud fittings or safetys.

Safety 6/1000

Item no. 999963100

1 m safety cable 6 mm Ø for securing a suspended loudspeaker. One side with a screwable quick connect.

Speaker stand crank

Item no. 999921300

Stable stand for cranking with double protection against falling. Height: 139 to 218 cm. Max. load capacity: 50 kg.

Speaker stand

Item no. 999921467

Stable stand with expanding mandrel system which provides a tight and firm fit for the speaker. Double protection against falling. Height: 132 - 220 cm. Max. load capacity: 50 kg.

Distance rod with crank

Item no. 999921340

Distance rod for cranking with expanding mandrel system which provides a tight and firm fit for the speaker. Height: 92 - 152 cm. Max. load capacity: 50 kg.

Telescopic rod

Item no. 999921368

Telescopic rod with expanding mandrel system for play-free seating in the tripod base. Height: 110 to 180 cm. Max. load capacity: 35 kg.

Ring-Lock adapter

Item no. 999921441

Adapter for mounting on stands or speaker rods. With Expanding mandrel system which provides a tight and firm fit for the speaker.

Carrying bag for 2 x speaker stand/ rod

Item no. 999920000

Carrying bag for two speaker stands or distance rods, also with crank. Two inside compartments with zipper and sturdy handles. Material waterproof nylon.

Cable Clip for speaker stand/ rod

Item no. 999935000

The cable clip made of robust, durable ABS plastic is specially designed for speaker stands and distance rods with 35 - 36 mm tube. It adheres firmly to the tube and holds the cables securely and neatly in the 24 x 16 mm guide accessible from the outside.

Transport cover Paveosub-115

Transport cover for Paveosub-115/115sp, stable Cordura fabric with padding, all handles and connections are cut.

Detachable wheelboard Paveosub-115

Detachable wheelboard to mount on Paveosub-115/115sp, 15 mm wood with polyurea coating, stackable, 2 butterfly locks, 2 handles, 4 black wheels, engraved logo.

Flying plate Paveosub-115

Item no. 40115002-9005

Set of 2 flying plates and screwes for Paveosub-115/-118. Mounted with M10 screws at the side thread points with integrated steel brackets of the subwoofer cabinet (from model year 2022). The upper row of holes allows the subwoofer to be rigged with clamps to a 29cm or 40cm truss, to be suspended with ring eyelets or to be mounted directly in ceilings with heavy-duty dowels.

Flight connectors Paveosub-115

Item no. 40115002-9005

Set of 4 connectors and screws for suspending the Paveosub-115 subs among each other. The load suspension is steel-in-steel with M10 screws.

speakON cable 0.5/1/3/6/10/15/20/30 m

Item no. 80440XXX1

Speaker cables in various lengths with Neutrik plug NL4FX. 4 x 4 sq mm, each wire 224 x 0.15 copper, diameter 11 mm, weight 273 g / m. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.

speakON adapter

Item no. 999654669

Adapter to connect two speaker cables.

PD-32-6 V2 TRUE1

Item no. 999492020

19"/3 HE intelligent 32A power distributor, suitable for applications in temporary and permanent installations. 32 A CEE Input, 6 x Schuko Output in parallel 6 x Neutrik powerCON TRUE1 Output, 1 x 16 A CEE, 6 x independent circuits (RCBO) and precise multi meter.

PD-32-6 V2 powerCON

Item no. 999492010

19"/3 HE intelligent 32A power distributor, suitable for applications in temporary and permanent installations. 32 A CEE Input, 6 x Schuko Output in parallel 6 x Neutrik powerCON Output, 1 x 16 A CEE, 6 x independent circuits (RCBO) and precise multi meter.

PD-32-6 V2 Multipin

Item no. 999492030

19"/3 HE intelligent 32A power distributor, suitable for applications in temporary and permanent installations. 32 A CEE Input, 6 x Schuko and 1 x Multipin ILME 16 pol. Output, 1 x 16 A CEE, 6 x independent circuits (RCBO) and precise multi meter.

Bagax product catalogue

Download product catalogue 2023 (English version)

BAGAX 2HE/19" SDS Stack-Rack

Item no. 9B1910002

SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 156 x 600 x 600 mm.

BAGAX 3HE/19" SDS Stack-Rack

Item no. 9B1910003

SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 201 x 600 x 600 mm.

BAGAX 4HE/19" SDS Stack-Rack

Item no. 9B1910004

SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 225 x 600 x 600 mm.

BAGAX 6HE/19" SDS Stack-Rack

Item no. 9B1910006

SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 336 x 600 x 600 mm.

BAGAX 2HE/19"/ED SDS Stack-Rack

Item no. 9B1920002

ED SDS Stack-Rack (Extra Deep Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 156 x 600 x 780 mm.

BAGAX 4HE/19"/ED SDS Stack-Rack

Item no. 9B1920004

ED SDS Stack-Rack (Extra Deep Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 225 x 600 x 780 mm.

BAGAX 6HE/19"/ED SDS Stack-Rack

Item no. 9B1920006

ED SDS Stack-Rack (Extra Deep Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 336 x 600 x 780 mm.

BAGAX Wheelboard for ED SDS & SDS Stack-Racks

Item no. 9B1940000

Wheelboard for ED SDS and SDS stack rack system. With stacking trays and locking system. 4 x blue wheels (two with brakes). Load capacity 450 kg.

Schuko V6 3/6/10/15/20 m

Item no. 80325XXX4

Schuko 6-fold junction with Titanex H07RN-F 3 x 2,5 sq mm cable in various lengths. The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.

XLR signal cable 0,5/3/6/10/15/20/30/50 m

Item no. 80205XXX5

XLR signal cable in different lengths with Neutrik connectors NC3FXX-B and B-NC3MXX, black housing and gold-plated contacts. Large wire diameter of 2 x 0,5 sq mm with 28 x 0.15 sq mm copper per core, 100 % shielding due to dense copper spiral turner and metallised fleece.

powerCON TRUE1-TOP 3/6/10/15/20/30/50 m

Item no. 80325XXX3

Titanex H07RN-F 3 x 2.5 sq mm cable in various lengths.The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance. With Neutrik powerCON TRUE1 - NAC3FX-W-TOP and NAC3MX-W-TOP device connectors.

powerCON TRUE1-TOP-Schuko 3/6/10/15/20/30/50 m

Item no. 80325XXX2

Titanex H07RN-F 3 x 2.5 sq mm cable in various lengths.The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance. With Neutrik powerCON TRUE1 - NAC3FX-W-TOP and Schuko device connectors.
