Info

The Paveosub-118 is a lightweight heavy-vented bass reflex subwoofer for universal applications for mobile use and in fixed installations.

Equipped with a top-notch 18" neodymium chassis it produces a high and undistorted bass level from the most compact dimensions. The low moving mass, with a powerful driver (B/L factor of 28), for rapid and accurate signal reproduction with excellent attack and decay, is sonically superior to many other 18" speaker designs.

The chassis has a large heavy duty 4" voice coil, a sophisticated ventilation system and a lower power compression than conventional bass drivers.

The power output is effectively used and the efficiency is maintained even under permanent full power use.

The substantial bass reflex ducts are located in four corners and the resulting chimney effect achieves good heat evaporation. The tunnel cross section equals to 500 cm², representing about 43% of the membrane surface, giving lower distortion and higher efficiency. Due to the large, open ports there is no air-flow noise. Any wobble effect is inhibited by the corner arrangement, as the air escapes from all sides creating a uniform back-pressure. The case walls are reinforced by this kind of tunnel setup again. Additional internal bracing provides stability and prevents unwanted resonances. Rubber feet and stacking cavities guarantee safe standing without slipping.

In addition to the rear mounted connecters there are two Speakon connectors in the speaker grille. These are used if the bass is located in under stage modules, or for convenient cabling or wiring of the reverse bass in cardioide bass arrays. The sockets in the grille and the back connector are protected against moisture with weather-proof capping.

For cargo securing and lashing in stacks, two certified grommets are countersunk in to the side.

On top is an integrated M20 pole socket.

The Paveosub-118 can also be subsequently converted by the factory to the self-powered version with power amplifier module and the DSP board.

Control

The woofer is in 8 Ω. The Paveosub-118 is powered by one channel (2.400 W/4 Ω) of HDSP-6, HDSP-4 or HDSP-3 nominal impedance is 4 Ω.

HDSP-Amplifiers contain presets to combine subwoofers with Voice-Acoustic tops. There are also presets for cardioid and bass-array application. One HDSP-6 or HDSP-4 can power up to four, one HDSP-3 up to two Paveosub-118.

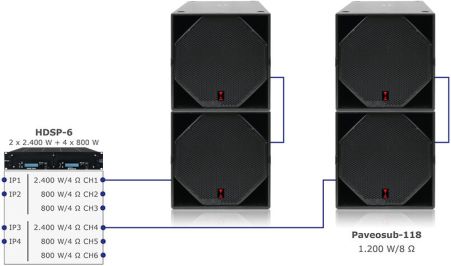

Paveosub-118 via HDSP-6
Paveosub-118 via HDSP-6

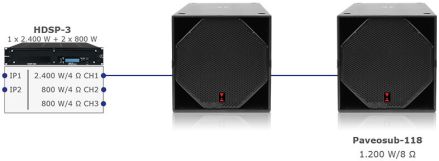

Paveosub-118 via HDSP-3
Paveosub-118 via HDSP-3

Technical Data

Drivers
1 x 18" Neodym long excursion woofer with 4" voice coil

Lower cut-off frequency
33 Hz (- 10 dB)
39 Hz (- 3 dB)

Impedance
8 Ω active separated

Powerhandling (AES / Program/ Peak)
1.200 W / 2.400 W / 4.800 W

Sensitivity 1 W/1 m
100 dB SPL (half space)

Sound pressure at (AES / Program/ Peak)
131 dB SPL / 134 dB SPL / 137 dB SPL

Connection
4 x NEUTRIK NL4 IN/OUT 2+/-

Finish
Polyurea coating in RAL 9005. Special colours also possible with Warnex textured paint

Dimensions / Weight
540 (H) x 540 (W) x 740 mm (D) / 41 kg

Downloads

Accessoires

Detachable wheelboard Paveosub-118

Item no. 501184000

Detachable wheelboard to mount on Paveosub-118/118sp, 15 mm wood with polyurea coating, stackable, 2 butterfly locks, 2 handles, 4 black wheels, engraved logo.

SP-Kit Paveosub-sp-8K4

Item no. 249108402

SP-Kit Paveosub-sp-8K4, self-powered electronic unit for retrofitting existing or used Paveosubs GEN2025 to self-powered., IN/OUT: 2 x analog, 2CH digital AES3, 8.000W, 4x 2.000W, incl. 6 m Schuko/powerCON TRUE1 cable.

SP-Kit Paveosub-sp-8K4D

Item no. 249108403

SP-Kit Paveosub-sp-8K4, self-powered electronic unit for retrofitting existing or used Paveosubs GEN2025 to self-powered., IN/OUT: 2 x analog, 2CH digital AES3, 8.000W, 4x 2.000W, incl. 6 m Schuko/powerCON TRUE1 cable.

Flying plate Paveosub-115/-118/-121

Item no. 409993011-9005

Set of 2 flying plates and screwes for Paveosub-115/-118/-121. Mounted with M10 screws at the side thread points with integrated steel brackets of the subwoofer cabinet (from model year 2022). The upper row of holes allows the subwoofer to be rigged with clamps to a 29cm or 40cm truss, to be suspended with ring eyelets or to be mounted directly in ceilings with heavy-duty dowels.

Flight connectors Paveosub-118/-121

Item no. 409993021-9005

Set of 4 connectors and screws for suspending the Paveosub-118/-121 subs among each other. The load suspension is steel-in-steel with M10 screws.

Ground stacking truss plate 45 cm

Item no. 401808450-9005

Ground stacking truss plate 45 cm made of aluminium black powder-coated, can be fixed on subs with an M20 screw and lashing straps. Can be used with additional M10 half truss cones for F23/24, F33/34, F44 truss, e.g. to bring tops or small and medium-sized line arrays (IK-6, IK-8) up to height.

Rolldolly Paveosub-118 horizontal

Item no. 501188400

Rolldolly Paveosub-118 horizontal, for 3x subs stacked side by side and max. 3 lines on top of each other (12 subs), 4 x black wheels 100 x 36 mm with brakes. Optional plug-in outriggers can be inserted in the corners and adjusted in depth and height, e.g. to stabilize a ground stacked PA and to level it on uneven ground.

Rolldolly Paveosub-118 vertical

Item no. 501188300

Rolldolly Paveosub-118 vertical, for up to 4 x stacked subs, 4 x black wheels 100 x 36 mm with brakes. Optional plug-in outriggers can be inserted in the corners and adjusted in depth and height, e.g. to stabilize a ground stacked PA and to level it on uneven ground. Also ideal as a stage trolley for quickly repositioning of EDM/drum monitoring with a Paveosub-118 and CXN-12/16 on top.

Rolldolly outrigger

Item no. 509994050

Rolldolly outrigger, insertion depth and height can be leveled, incl. Quick-Lock-Pin (must be fixed to the dolly).

Castor heavy-duty

Item no. 504558000

Transport castor heavy-duty for converting Rolldolly. Braked 160 mm swivel castor with ball bearing mounted aluminum rim and 50 mm wide wheel tread. Easier to push on grass. Load capacity 300 kg, incl. screws.

Carrying bag big for 2 x speaker stand/ rod

Item no. 999920000

Carrying bag big, for 2 x speaker stands/speaker rods or Rolldolly outrigger, 1.200 x 190 x 290 mm.

Distance rod with crank type 213/40

Item no. 999921340

M20 Crank speaker rod type 213/40 with Ring-Lock function for clearance-free mounting in the speaker flange, high 920 - 1.520 mm, max. 35 kg load.

Telescopic rod type 213/68

Item no. 999921368

M20 Telescopic speaker rod type 213/68 extra high with Ring-Lock function for clearance-free mounting in the speaker flange, high 1.100 - 1.800 mm, max. 35 kg load.

Telescopic rod type 213/37

Item no. 999921337-9010

M20 Telescopic speaker rod type 213/37 (white), high 905 - 1.450 mm, max. 35 kg load.

Telescopic rod type 246/26 black

Item no. 999924626-9005

M20 Telescopic speaker rod type 246/26 super high (black), high 1.400 - 2.400 mm, max. 30 kg load.

Telescopic rod type 246/26 white

Item no. 999924626-9010

M20 Telescopic speaker rod type 246/26 super high (white), high 1.400 - 2.400 mm, max. 30 kg load.

Carrying bag long

Item no. 999924609

Carrying long, für 2 x telescopic speaker rod type 246/26, 120 x 19 x 29 cm, 1.420 x 200 x 140 mm.

Adapter with Ring-Lock function

Item no. 999921441

Stand adapter with Ring-Lock function, e.g. for speaker stand type 213 or distance rod type 246/26. The ring-lock function ensures a clearance-free fit in the speaker's high stand flange.

M20 Adapter 250 mm

Item no. 999921329

The 250 mm long adapter is perfectly suited as a M20 single rod or as an extension rod.

Speaker rod short type 214/47

Item no. 999921447

M20 M20 speaker rod short type 214/47 with Ring-Lock function, height 250 mm, max. 35 kg load, e.g. for tops in vertically high ground stacks on subwoofers.

Cable Clip for speaker stand/ rod

Item no. 999935000

The cable clip made of robust, durable ABS plastic is specially designed for speaker stands and distance rods with 35 - 36 mm tube. It adheres firmly to the tube and holds the cables securely and neatly in the 24 x 16 mm guide accessible from the outside.

speakON cable 0.5/1/3/6/10/15/20/30 m

Item no. 80440XXX1

Speaker cables in various lengths with Neutrik plug NL4FX. 4 x 4 sq mm, each wire 224 x 0.15 copper, diameter 11 mm, weight 273 g / m. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.

speakON adapter

Item no. 999654669

Adapter to connect two speaker cables.
