Info

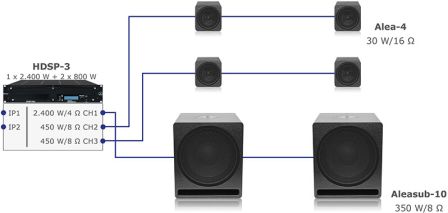

The HDSP-3 system power amplifier is the heart of the Aleasub-10 Install Set Plug & Play Satellite System. The system is ‘Plug and Play’. Plug it in, and it is ready for use. All components are matched, adjusted and limited via the integrated speaker management system (DSP). The sound is synchronised right away, without having to make further adjustments.
Experienced technicians and professional audio operator can still alter the functions and have access capabilities to the DSP settings. Access to almost all parameters without PC control can be made using the Display buttons and encoder wheel. The functions can be password protected obviating unauthorized interference. Complex configurations can be comfortably created via the Ethernet, or an integrated bi-directional wireless interface on the PC surface, using the VA-WLAN remote software for PC and Mac. Individual sound ideas and alterations can be saved as presets and recalled at any time.
The aesthetic design of the Alea-4 compact loudspeaker captivates with its high level of efficiency and linear frequency response, all packed into the smallest box dimensions. It is perfectly suited to various sound reinforcement applications, as a main or fill system. Its compact appearance allows it to be integrated into just about every stage scene.
The next generation lightweight 4" neodymium wideband transducer is water resistant. The Alea-4 can also be utilized in high moisture areas and even temporary exposure to rain. Connection is achieved with two Neutrik Speakons in addition to a parallel 4 pole Phoenix contact connector.
The Aleasub-10 is a subwoofer specifically designed as low frequency extension of our successful Alea-4. It serves all media and installation needs with its discreet yet classy modern design and satisfies even increased demand for optical appearance. Small size goes hand in hand with high efficiency, a powerful low end and very precise sound reproduction.
Due to their uniform design all Alea speakers offer the same creative potential. Like Alea-4 also the Alea-10 can be custom designed with all RAL and effect colours, as well as bi- or triple-coloured. A different colour can be designated to cabinet, micromesh honeycomb grille and ring. Grille and ring can also be coated in gold or chrome. This way it's even possible to adapt the Aleasub-10 to your own CI needs.
There is an optional heavy-duty bracket to mount the system on ceilings or truss. Like Alea-4 we offer a concealed and elegant wall mount. The back plate is recessed into the cabinet leaving space for a shallow wall mount and Phoenix Contact connectors.
The possibility of splitting, extension, scaling, ease of use and comprehensive, well thought out accessories complete the Aleasub-10 Install Set and make it a universal PA tool with a very wide range of applications.
Accessoires
Carrying bag for Alea-4 / Alea-5
Item no. 500042000
Carrying bag for up to four Alea-4 or two Alea-5 with U-bracket. Includes insertable divider pad and additional front pocket for accessories.
Heavy-Duty Flightcase for Alea-4
Item no. 500043000
Heavy-Duty Flightcase for up to four Alea-4 loudspeaker included mounted U-bracket, 9 mm wood with black and scratch-resistant surface, stable 35 x 35 mm edge profile with 2.5 mm thickness and 5 mm outer radius and recessed grooved rivet. Dimensions/Weight: 221 (h) x 420 (w) x 340 mm (d) / 6,5 kg.
U-mounting bracket Alea-4
Item no. 400041001
The stable swivel bracket guarantees exact alignment with the listener arena and a secure stand on stage or in fix mounting on trusses, walls and ceilings.
Wall holder for hidden mounting Alea-4
Item no. 400042001
There is also an elegantly concealed mounting option without the bracket for Alea-4 / Alea-5. The back cover plate of the loudspeaker is recessed into the box, giving a cavity behind which space is available for a wall mount and Phoenix connection terminals. The loudspeakers can be mounted on a small wall mount corner plate and secured with an inauspicious grub screw.
Tripod transducer with threaded pin
Item no. 999924521
Tripod transducer with threaded pin M10 x 12 mm and large clamping screw for locking to the tripod. For all common speaker stands with Ø 35 mm.
Quick-Mounting adapter
Item no. 999910001
Quick coupling for easy replacement of the Alea-4 with U-bracket. The tongue and groove mechanism with hexagonal flange ensures a firm connection and controlled alignment of the Alea-4 on the speaker stand.
Universal joint with thread adapter
Item no. 999919695
The universal joint can be mounted on the speaker stand and allows you an even wider range of orientations.
M20 Adapter
Item no. 999921950
Thread adapter with Female thread M20 x 1,25 mm and Male thread M20. To use the speaker stand with the M20 flange of Voice-Acoustic subwoofer.
Alea-4 speaker stand with round base
Item no. 999926125
Elegant speaker stand with narrow tube and round base for Alea-4 loudspeaker. The tripod is adjustable in height from 1 to 1.7 m and is available in black or white.
Extension rod 3/8" x 500 mm
Item no. 999920004
Extension rod black for stand with round base (Item no. 999926125). On the one side there is a 3/8" female thread, on the other side 3/8" male thread.
Carrying bag for Alea-4 stands with round base
Item no. 999926019
Carrying bag for up to three Alea-4 stands with a narrow tube, including round base Ø 275 mm. Three inside compartments with draw-string closure and sturdy handles. Material waterproof nylon.
U-mounting bracket Aleasub-10
Item no. 401001001
The stable swivel bracket guarantees exact alignment with the listener arena and a secure stand on stage or in fix mounting on trusses, walls and ceilings.
Wall holder for hidden mounting Aleasub-10
Item no. 401002001
There is also an elegantly concealed mounting option without the bracket for Aleasub-10. The back cover plate of the loudspeaker is recessed into the box, giving a cavity behind which space is available for a wall mount and Phoenix connection terminals. The loudspeakers can be mounted on a small wall mount corner plate and secured with an inauspicious grub screw.
Handhold Aleasub-10
Item no. 999934482
Carry handle for mounting on the rear panel of the Aleasub-10.
speakON cable 0.5/1/3/6/10/15/20/30 m
Item no. 80440XXX1
Speaker cables in various lengths with Neutrik plug NL4FX. 4 x 4 sq mm, each wire 224 x 0.15 copper, diameter 11 mm, weight 273 g / m. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.
speakON adapter
Item no. 999654669
Adapter to connect two speaker cables.
PD-32-6 V2 TRUE1
Item no. 999492020
19"/3 HE intelligent 32A power distributor, suitable for applications in temporary and permanent installations. 32 A CEE Input, 6 x Schuko Output in parallel 6 x Neutrik powerCON TRUE1 Output, 1 x 16 A CEE, 6 x independent circuits (RCBO) and precise multi meter.
PD-32-6 V2 powerCON
Item no. 999492010
19"/3 HE intelligent 32A power distributor, suitable for applications in temporary and permanent installations. 32 A CEE Input, 6 x Schuko Output in parallel 6 x Neutrik powerCON Output, 1 x 16 A CEE, 6 x independent circuits (RCBO) and precise multi meter.
PD-32-6 V2 Multipin
Item no. 999492030
19"/3 HE intelligent 32A power distributor, suitable for applications in temporary and permanent installations. 32 A CEE Input, 6 x Schuko and 1 x Multipin ILME 16 pol. Output, 1 x 16 A CEE, 6 x independent circuits (RCBO) and precise multi meter.
Bagax product catalogue
Download product catalogue 2023 (English version)
BAGAX 2HE/19" SDS Stack-Rack
Item no. 9B1910002
SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 156 x 600 x 600 mm.
BAGAX 3HE/19" SDS Stack-Rack
Item no. 9B1910003
SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 201 x 600 x 600 mm.
BAGAX 4HE/19" SDS Stack-Rack
Item no. 9B1910004
SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 225 x 600 x 600 mm.
BAGAX 6HE/19" SDS Stack-Rack
Item no. 9B1910006
SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 336 x 600 x 600 mm.
BAGAX 2HE/19"/ED SDS Stack-Rack
Item no. 9B1920002
ED SDS Stack-Rack (Extra Deep Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 156 x 600 x 780 mm.
BAGAX 4HE/19"/ED SDS Stack-Rack
Item no. 9B1920004
ED SDS Stack-Rack (Extra Deep Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 225 x 600 x 780 mm.
BAGAX 6HE/19"/ED SDS Stack-Rack
Item no. 9B1920006
ED SDS Stack-Rack (Extra Deep Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 336 x 600 x 780 mm.
BAGAX Wheelboard for ED SDS & SDS Stack-Racks
Item no. 9B1940000
Wheelboard for ED SDS and SDS stack rack system. With stacking trays and locking system. 4 x blue wheels (two with brakes). Load capacity 450 kg.
Schuko V6 3/6/10/15/20 m
Item no. 80325XXX4
Schuko 6-fold junction with Titanex H07RN-F 3 x 2,5 sq mm cable in various lengths. The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.
XLR signal cable 0,5/3/6/10/15/20/30/50 m
Item no. 80205XXX5
XLR signal cable in different lengths with Neutrik connectors NC3FXX-B and B-NC3MXX, black housing and gold-plated contacts. Large wire diameter of 2 x 0,5 sq mm with 28 x 0.15 sq mm copper per core, 100 % shielding due to dense copper spiral turner and metallised fleece.
powerCON TRUE1-TOP 3/6/10/15/20/30/50 m
Item no. 80325XXX3
Titanex H07RN-F 3 x 2.5 sq mm cable in various lengths.The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance. With Neutrik powerCON TRUE1 - NAC3FX-W-TOP and NAC3MX-W-TOP device connectors.
powerCON TRUE1-TOP-Schuko 3/6/10/15/20/30/50 m
Item no. 80325XXX2
Titanex H07RN-F 3 x 2.5 sq mm cable in various lengths.The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance. With Neutrik powerCON TRUE1 - NAC3FX-W-TOP and Schuko device connectors.
