- 2 x 18" bassreflex subwoofer self-powered version
- 3-channel 4 kW ampmodul: 1 x 2.400 Watt + 2 x 800 Watt at 4 Ω
- Manual control via display, push-button and encoder
- Software control via Dante (Digital Audio Network Through Ethernet)
- 120 internal Presets
- Polyurea coating, optional RAL colors (Warnex texture paint)
- 1 x 6 m Schuko/powerCON TRUE1-TOP cable

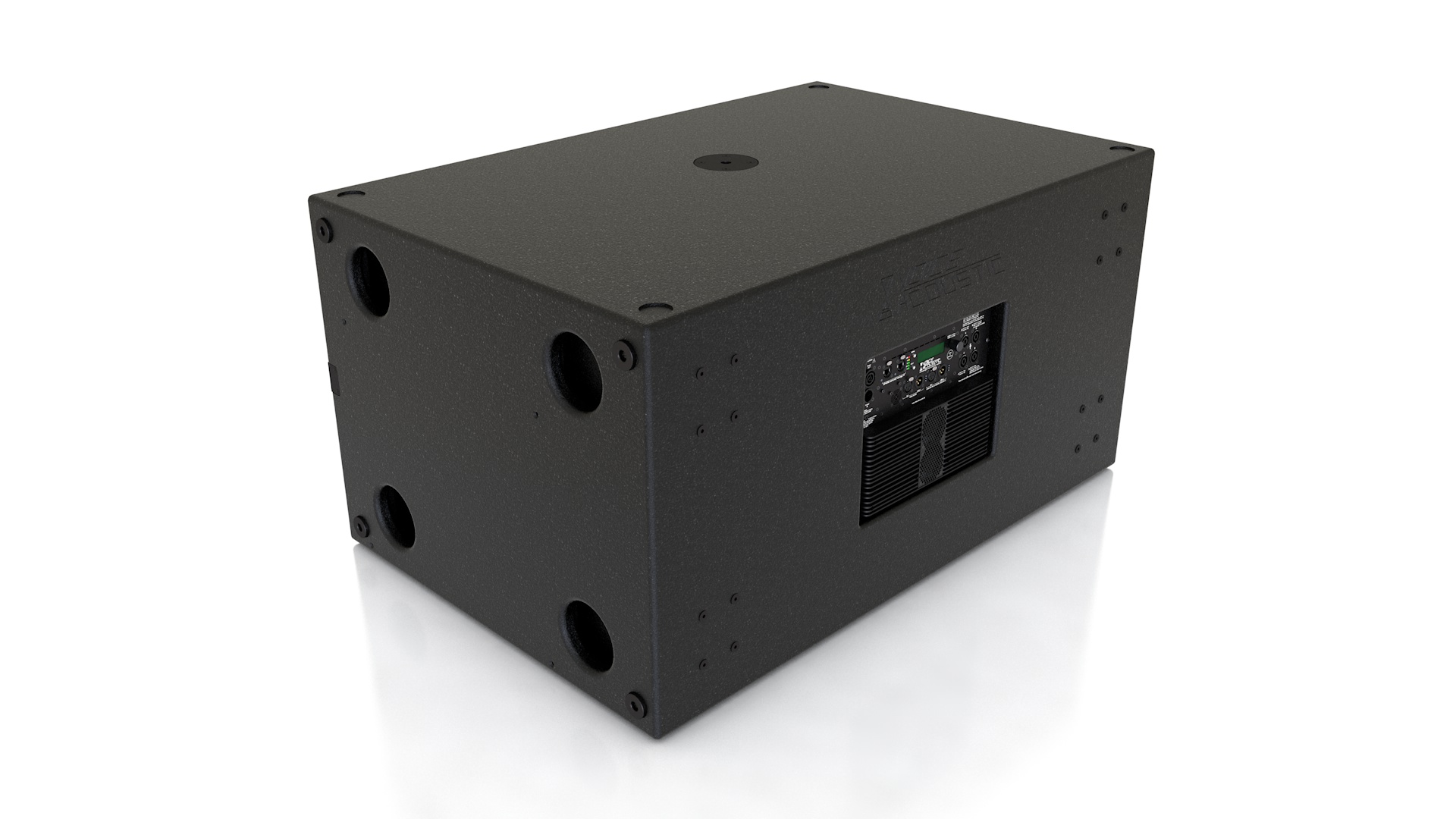

The Paveosub-218sp DDA is a heavily vented bassreflex subwoofer designed for highest quality mobile and installation application.
DDA stands for a new generation of DSP and input boards that can process a variety of signals: DANTE, Digital AES/EBU, AES67 and analog inputs. The signals can be looped further.
This self-powered subwoofer is equip with a very strong 3-channel 4 kW power amplifier module and the DSP loudspeaker management system.
Two premium 18" neodymium transducers make sure it can deliver powerful and distortion-free sound pressure levels while still providing a dynamic and low bass. Low moving mass coupled with a powerful neodymium motor provide precise signalreproduction with excellent transient response which sonically outclasses other 18" designs. A large format and powerful voice coil together with sophisticated cooling convert amplifier power more efficiently and keep powercompression low even at longterm maximum power.
Large format ports increase efficiency and prevent annoying vent noise across the whole performance range. The design of the ports further strengthens the cabinet's top and bottom. Additional reinforcement and bracing prevents resonances, increases rear attenuation and turns the Paveosub-218sp DDA into an extemely robust and ideal touring subwoofer.
There are 8 optimized handles accessible from any direction (they even include drains !) so you won't break your back.
You won't strain your back during transport and set-up due to 8 optimized handles (they even include drains !) which are easily accessible from any direction.
The subwoofer can be used horizontally or upright and provides. Stacking trays and two M20 pole mount as well as foots on the opposite side. When used upright it forms an elegant package together with the Ikarray-12 due the same 60 cm width of the system. The stacking trays are made to fit Ikarray OPER-frames and Ikarray Gound-Stacking-Boards.
In addition to the rear connector panel you can find two additonal Speakon connectors on the robust front grille. They provide easy access when the subwoofer is positioned under the stage floor or when cabinets are turned around for creating cardioid arrays. This way cables can be kept out of sight from the audience. The front connectors as well as the loop-through connector on the rear panel use rubber caps to protect them from moisture.
There are two options for easy transport:
- the cabinet can be fitted with 100 mm bluewheels on the rear side (16 x M6 fittings)
- via stackable front transport covers including wheels and butterfly latches
The Paveosub-218sp DDA is a plug & play system. All the required settings for different configurations are stored as factory presets in the internal memory. For best performance and reliability, simply selecting the corresponding preset on the Display for use as either, a single bass in the stack with several basses, or as cardioide and end-fire bass arrays, or as a center of a Satellite system in conjunction with different tops (passive stereo, bi-amping, mono).
The active electronics are convection cooled by a large heatsink and are maintenance free. No dust or moisture can be sucked or drawn in, making the Paveosub-218sp DDA ideal for permanent installations. The robust cooling fins are amply rounded and have no sharp edges.
The control unit, DSP unit, signal connections and the Speakon OUT terminal are protected against moisture with a weather-proof, transparent cover. The cooling system is waterproof and the powerCON TRUE1 connectors are equipped with a rubber sealing cap.
Control
The Paveosub-218sp DDA is operated on one channel (2.400 W/4 Ω) from internal power amplifier modules. 2 x 800 W/4 Ω for tops or monitors.
Technical Data
Drivers
2 x 18" Neodym long excursion woofer with 4" voice coil
Lower cut-off frequency
32 Hz (- 10 dB)
36 Hz (- 3 dB)
Impedance
4 Ω active separated
Powerhandling (AES / Program / Peak)
2.400 W / 4.800 W / 9.600 W
Sensitivity 1 W/1 m
102,5 dB SPL (half space)
Sound pressure at (AES / Program / Peak)
136 dB SPL / 139 dB SPL / 142 dB SPL
Connection
2 x NEUTRIK NL4 IN/OUT 2+/-
Finish
Polyurea coating in RAL 9005
Dimensions / Weight
600 (H) x 1.160 (W) x 770 mm (D) / 85,2 kg
Amplifier
3rd Generation Class D
Power output CH1
2.400 W/4 Ω, 1.580 W/8 Ω
Power output CH2 & CH3
800 W/4 Ω, 450 W/8 Ω, 200 W/16 Ω
Amplifier gain
LF: 32 db, HF: 26 db
Signal-to-noise ratio
>120 db (20 - 20.000 Hz, 8 Ω)
Damping factor
>1.000 (8 Ω, 1 kHz)
Distortion
THD+N < 0,05 % (20 - 20.000 Hz, 8 Ω)
Protection
Start-up current limiting (soft start)
Protection circuit on and off transients
Under and over voltage protection
DC protection of outputs
Input limiter, peak limiter
Temperature monitoring of the heatsink and transistors
Voltage
Intelligent and regulated switching power supply with automatic voltage detection
Switching between 120/230 V 50/60 Hz, worldwide use
Voltage range: from 85 - 268 V
Prozessor
64 bit, 96 kHz sample rate
Controllable units about software
Up to 128 self-powered loudspeaker and HDSP-Amplifiers in one network
Dynamic range input
120 db
Input level Nominal / Maximal
+ 6 dBu / + 23 db
Latency
0 - max. 0,5 ms
Routing
2 input mixers allow flexible routing to each output
EQ Filter
20 parametric EQ filters per path
each filter can be set as Bell, Shelving, Notch, or Allpass Filter
X-Over
Butterworth, Bessel, Linkwitz-Riley
Limiter
Per input and output
Delay
0 up to 800 ms (max. 275 m delay) in each input for the user
0 up to 17 ms (max. 6 m delay) per output for time alignment between the acoustic centers
Phase
Infinitely adjustable from 0° - 180°
Operable language
English, German, France, Spain
Software interfaces
Software update via Ethernet
Realtime monitoring for PC and MAC
Impedance measurement -monitoring of the connected drivers per output stage channel
Temperaturmessung der EndstufensektionTemperature measurement of the power amplifier section
Gruppenbildung zum gleichzeitigen Einstellen aller zusammengefassten LautsprechertypenGroup building for simultaneous setting of all combined speaker types
Dimmung und Abschaltung des DisplaysDimming and switching off the display
Standby-Schaltung des EndstufenmodulsStandby circuit of the power amplifier module
Passwortschutz mit Abstufung: Werkseinstellung / User-Ebene / KomplettschutzPassword protection with gradation: Factory setting / user level / complete protection
Accessoires
Detachable wheelboard Paveosub-218
Item no. 502184000
Detachable wheelboard to mount on Paveosub-218/218sp, 15 mm wood with polyurea coating, stackable, 2 butterfly locks, 4 handles, 4 black wheels, engraved logo.
Castor set
Item no. 999490985
Castor set for permanent installation at the back, consisting of 4 x Black Wheels 100 x 36 mm with brakes. Including 16 x mounting screws M8 x 30 mm galvanized.
DANTE-Interface 4CH
Item no. 319700043
DANTE Interface 4CH, 4 x analog inputs, 1 x 4CH DANTE output on Ethercon RJ45. Can be used to convert 4 analog signal inputs into DANTE and feed them via one CAT cable into the DANTE capable self-powered subs or HDSP amplifiers. This saves the user wiring and allows all 4 signal inputs of the DSP to be used. Power can be supplied via PoE or optional 12V standard power supply.
Ground stacking truss plate 45 cm
Item no. 401808450-9005
Ground stacking truss plate 45 cm made of aluminium black powder-coated, can be fixed on subs with an M20 screw and lashing straps. Can be used with additional M10 half truss cones for F23/24, F33/34, F44 truss, e.g. to bring tops or small and medium-sized line arrays (IK-6, IK-8) up to height.
Rolldolly Paveosub-218 horizontal
Item no. 502188400
Rolldolly Paveosub-218 horizontal, for 3x subs stacked side by side standing upright, 4 x black wheels 100 x 36 mm with brakes. Optional plug-in outriggers can be inserted in the corners and adjusted in depth and height, e.g. to stabilize a ground stacked PA and to level it on uneven ground.
Rolldolly Paveosub-218 vertical
Item no. 502188300
Rolldolly Paveosub-218 vertical, for up to 4 x stacked subs, 4 x black wheels 100 x 36 mm with brakes. Optional plug-in outriggers can be inserted in the corners and adjusted in depth and height, e.g. to stabilize a ground stacked PA and to level it on uneven ground.
Rolldolly outrigger
Item no. 509994050
Rolldolly outrigger, insertion depth and height can be leveled, incl. Quick-Lock-Pin (must be fixed to the dolly).
Castor heavy-duty
Item no. 504558000
Transport castor heavy-duty for converting Rolldolly. Braked 160 mm swivel castor with ball bearing mounted aluminum rim and 50 mm wide wheel tread. Easier to push on grass. Load capacity 300 kg, incl. screws.
Carrying bag big for 2 x speaker stand/ rod
Item no. 999920000
Carrying bag big, for 2 x speaker stands/speaker rods or Rolldolly outrigger, 1.200 x 190 x 290 mm.
Distance rod with crank type 213/40
Item no. 999921340
M20 Crank speaker rod type 213/40 with Ring-Lock function for clearance-free mounting in the speaker flange, high 920 - 1.520 mm, max. 35 kg load.
Telescopic rod type 213/68
Item no. 999921368
M20 Telescopic speaker rod type 213/68 extra high with Ring-Lock function for clearance-free mounting in the speaker flange, high 1.100 - 1.800 mm, max. 35 kg load.
Telescopic rod type 213/37
Item no. 999921337-9010
M20 Telescopic speaker rod type 213/37 (white), high 905 - 1.450 mm, max. 35 kg load.
Telescopic rod type 246/26 black
Item no. 999924626-9005
M20 Telescopic speaker rod type 246/26 super high (black), high 1.400 - 2.400 mm, max. 30 kg load.
Telescopic rod type 246/26 white
Item no. 999924626-9010
M20 Telescopic speaker rod type 246/26 super high (white), high 1.400 - 2.400 mm, max. 30 kg load.
Carrying bag long
Item no. 999924609
Carrying long, für 2 x telescopic speaker rod type 246/26, 120 x 19 x 29 cm, 1.420 x 200 x 140 mm.
Adapter with Ring-Lock function
Item no. 999921441
Stand adapter with Ring-Lock function, e.g. for speaker stand type 213 or distance rod type 246/26. The ring-lock function ensures a clearance-free fit in the speaker's high stand flange.
M20 Adapter 250 mm
Item no. 999921329
The 250 mm long adapter is perfectly suited as a M20 single rod or as an extension rod.
Speaker rod short type 214/47
Item no. 999921447
M20 M20 speaker rod short type 214/47 with Ring-Lock function, height 250 mm, max. 35 kg load, e.g. for tops in vertically high ground stacks on subwoofers.
Cable Clip for speaker stand/ rod
Item no. 999935000
The cable clip made of robust, durable ABS plastic is specially designed for speaker stands and distance rods with 35 - 36 mm tube. It adheres firmly to the tube and holds the cables securely and neatly in the 24 x 16 mm guide accessible from the outside.
speakON cable 0.5/1/3/6/10/15/20/30 m
Item no. 80440XXX1
Speaker cables in various lengths with Neutrik plug NL4FX. 4 x 4 sq mm, each wire 224 x 0.15 copper, diameter 11 mm, weight 273 g / m. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.
speakON adapter
Item no. 999654669
Adapter to connect two speaker cables.
XLR signal cable 0,5/3/6/10/15/20/30/50 m
Item no. 80205XXX5
XLR signal cable in different lengths, SC Primus 2 x 0,5 mm² made of 28 x 0,15 Ø copper strands, 100 % shielding due to dense copper spiral turner and metallised fleece, Neutrik NC3MXX-B/NC3FXX-B plugs, gold-plated contacts, black plug housing.
powerCON TRUE1-TOP 3/6/10/15/20/30/50 m
Item no. 80325XXX3
Titanex H07RN-F 3 x 2.5 sq mm cable in various lengths.The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance. With Neutrik powerCON TRUE1 - NAC3FX-W-TOP and NAC3MX-W-TOP device connectors.
powerCON TRUE1-TOP-Schuko 3/6/10/15/20/30/50 m
Item no. 80325XXX2
Titanex H07RN-F 3 x 2.5 sq mm cable in various lengths.The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance. With Neutrik powerCON TRUE1 - NAC3FX-W-TOP and Schuko device connectors.
