Info

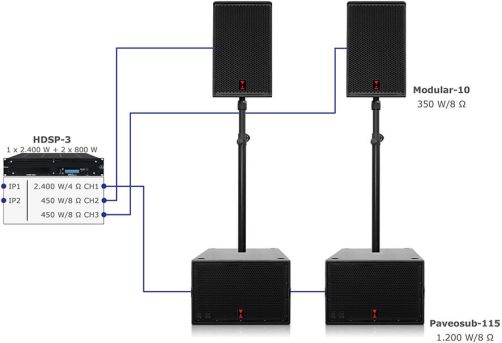

The SubSat-10 set consists in the standard configuration of one HDSP-3 amplifier, two Paveosub-115 and two Modular-10.
The system is ‘Plug and Play’. Plug it in, and it is ready for use. All components are matched, adjusted and limited via the integrated speaker management system (DSP). The sound is synchronised right away, without having to make further adjustments. Access to almost all parameters without PC control can be made using the Display buttons and encoder wheel. Complex configurations can be comfortably created via the Ethernet, or an integrated bi-directional wireless interface on the PC surface, using the VA-WLAN remote software for PC, and Mac. Individual sound ideas and alterations can be saved as presets and recalled at any time.
The SubSat-10 set offers a ‘not-yet-achieved’ performance in the compact class. The high efficiency of the speakers, in conjunction with the high powered amplifier, achieves a sound pressure which previously could only be obtained with considerably larger systems. This system has enough power for use in small venues and can also achieve an excellent acoustic irradiation of events consisting of several hundred people.
The set sounds balanced at all volume levels: powerful, transparent and fine resolution. The range of the Modular-10 Set is vast, both through the vertical plane, and the tight bundling of the large 60° x 40° or optional 90° x 40° horn. Speech intelligibility is also perfect at a distance. Both speech and vocals are clear and understandable in larger and rectangular spaces.
Special emphasis has been placed on an even and clean coverage of the Modular-10 Set. The top unit is designed so that the frequency response is linear and without constrictions even outside the main axis of radiation. The sound is thus almost identical anywhere in front of the speaker.
The patented array design of the tops heads minimizes interference between the sound sources. Two or more systems can also provide a great combined PA. This multiple usage factor provides the user with an even wider range with only one speaker system.
The possible extensions, scaling, ease of use, and extensive utilitarian accessories, complete the SubSat-10 set and make it a universal PA tool.
Accessoires
Transport and rain cover Modular-10
Item no. 500101100 | 500101200
Transport and rain cover for Modular-10, stable Cordura fabric with padding, all handles and connections are cut. The front can be folded to the side, behind it there is a sound-permeable gases as rain protection for outdoor applications.
Heavy-duty hooded flight case for Modular-10 speakers
Item no. 500103001
Heavy-duty hooded flight case for up to two Modular-10 speakers. Features include: 4 blue wheels (2 with brakes), 4 large butterfly latches, 6 large folding handles, 9 mm wood with a black, scratch-resistant surface, sturdy 35 x 35 mm edge profile with 2.5 mm material thickness and 5 mm outer radius and recessed rivet channel.
Dimensions/Weight: 724 mm (H) x 400 mm (W) x 675 mm (D) / 29.00 kg
Easyfly-mechanics
Item no. 409991001
Tool-free flight-mechanics for clicking and exact alignment of the speaker in the horizontal and vertical axis. Removable recording for example the self-lock clamp included.
Carrying bag for Easyfly-Mechanics
Item no. 409992000
Carrying bag for up to two Easyfly-Mechanics with attached truss clamp plus accessory compartment for e.g. two safetys with single studs.
Self-lock clamp
Item no. 999950731
Loudspeakers can be flown by one person with the self-lock clamp. The clamp hooks directly into the truss and can be easily tightened. Load capacity 250 kg.
Multifunctional rotating ceiling bracket
Item no. 409998001
For hanging speakers from ceilings using steel cables or chains and various accessories. Horizontal alignment due to central pivot axis. Max. load: 60 kg. Available in white and black. Supplied without further mounting accessories.
Universal suspension device for flight mechanics
Item no. 409992001
For suspending speakers from very high ceilings or trusses. Prevents speakers from twisting due to two parallel steel cables or chains and allows horizontal alignment due to central pivot axis. Suitable for Easyfly mechanics, LA-Stick flying mechanics, Ikarray-8 flying mechanics and all U- and C-brackets. Delivery without further mounting accessories.
Rotating double pipe clamp with aluminum pipe
Item no. 409992000
With this construction you can mount two speakers from the Modular series in horizontal array.
Wall console for flight hardware
Item no. 409994901
Wall mount bracket made of steel with aluminium tube for hanging loudspeakers on walls by using truss clamps and loudspeaker-specific flying hardware. The outriggers of the wall bracket have a row of holes so that the truss clamps, which hold the aluminium tube, can be repositioned. This allows the distance between the speakers and the wall to be varied. All components are black powder-coated. Delivery includes: 2 x wall console, 2 x truss clamps, 1 x 600 mm aluminium tube 50 x3 mm, 2 x plastic caps for the tube. Max. load 75 kg, static calculation available.
Speaker ceiling mount
Item no. 999924496
Robust and useful loudspeaker ceiling mount with 250 mm distance and internal cable management. The swivel area is +/-45 °. Within the parameters - the settings range from 0 to 45°. Max. load capacity: 25 kg. Available in white and black.
Tilting and swivelling wall holder
Item no. 999924481
Wall holder with large wall plate for heavy boxes. The mounted box can be swivelled sideways and tilted up to 30 °. Easy installation due to practical mounting and screwing. Max. load capacity: 25 kg. Available in white and black.
Wall mount with extension
Item no. 409994031
Wall mount with extension (180° horizontal and 30° vertical adjustment) for parallel positioning. Max. Load capacity: 25 kg. Available in white and black.
Wall holder can be swiveled and tilted
Item no. 999924173
Wall holder with tilt and swivel orientation: 145° horizontal, 30° vertical. The inclination can be fixed in 6 steps. The distance to the wall can be selected in 3 steps. With receptacle for high stand flange. Holder is almost completely covered by the speaker. Max. Load capacity: 25 kg.
Tilting and swivelling wall holder XL
Item no. 999924120
Stable wall holder with tilt and swivel orientation: 180° horizontal, 22° vertical adjustable in 11 steps. Expanding mandrel for play-free seating in the tripod base of the speaker. Max. load capacity: 50 kg.
Wall- and Trussholder
Item no. 999924150
Wall- and Trussholder with a joint and a tube clamp, circa 520 mm long. Max. load capacity: 50 kg.
Single stud
Item no. 999957450
Single stud for securing a loudspeaker with safety cable.
Double-Stud Fitting
Item no. 999957401
For hanging and aligning loudspeakers with chains.
Eye Bolt
Item no. 999917370
M10 x 40 mm eye bolt is screwed into rearward mounting point and the speaker can also be secured directly to the housing with a safety cable.
Screwable quick connect
Item no. 999908000
Screwable quick connect member for e.g. single and double stud fittings or safetys.
Safety 6/1000
Item no. 999963100
1 m safety cable 6 mm Ø for securing a suspended loudspeaker. One side with a screwable quick connect.
Speaker stand crank
Item no. 999921300
Stable stand for cranking with double protection against falling. Height: 139 to 218 cm. Max. load capacity: 50 kg.
Speaker stand
Item no. 999921467
Stable stand with expanding mandrel system which provides a tight and firm fit for the speaker. Double protection against falling. Height: 132 - 220 cm. Max. load capacity: 50 kg.
Distance rod with crank
Item no. 999921340
Distance rod for cranking with expanding mandrel system which provides a tight and firm fit for the speaker. Height: 92 - 152 cm. Max. load capacity: 50 kg.
Telescopic rod
Item no. 999921368
Telescopic rod with expanding mandrel system for play-free seating in the tripod base. Height: 110 to 180 cm. Max. load capacity: 35 kg.
Ring-Lock adapter
Item no. 999921441
Adapter for mounting on stands or speaker rods. With Expanding mandrel system which provides a tight and firm fit for the speaker.
Stand fork
Item no. 999924105
Stand fork for two tops, with expanding mandrel system which provides a tight and firm fit for the speakers. Max. load capacity: 2 x 25 kg.
Iron base with weight plate
Item no. 999912311
The set includes a flat 10 kg iron base Ø 45 and a 5 kg weight disc. It is suitable distance rods with an M20 screw thread. The weight disc can be mounted tool-free.
Carrying bag for round base Ø 45 cm
Item no. 999912399
Padded bag made of robust, water-repellent nylon, with space for a round base Ø 45 cm with weight disc. The bag has two carrying straps with a soft velcro handle, a sturdy zipper and a transparent window for labels.
Iron base
Item no. 999926705
The iron base 55 x 55 cm has a carrying handle and a cable bushing. The base is suitable distance rods with an M20 screw thread. Weight: 13,5 kg.
Carrying bag for iron base
Item no. 999933100
Padded bag made of robust, water-repellent nylon, with space for a iron base 55 x 55 cm. The bag has a padded handle and a stable zipper.
Carrying bag for 2 x speaker stand/ rod
Item no. 999920000
Carrying bag for two speaker stands or distance rods, also with crank. Two inside compartments with zipper and sturdy handles. Material waterproof nylon.
Cable Clip for speaker stand/ rod
Item no. 999935000
The cable clip made of robust, durable ABS plastic is specially designed for speaker stands and distance rods with 35 - 36 mm tube. It adheres firmly to the tube and holds the cables securely and neatly in the 24 x 16 mm guide accessible from the outside.
Transport cover Paveosub-115
Transport cover for Paveosub-115/115sp, stable Cordura fabric with padding, all handles and connections are cut.
Detachable wheelboard Paveosub-115
Detachable wheelboard to mount on Paveosub-115/115sp, 15 mm wood with polyurea coating, stackable, 2 butterfly locks, 2 handles, 4 black wheels, engraved logo.
Flying plate Paveosub-115
Item no. 40115002-9005
Set of 2 flying plates and screwes for Paveosub-115/-118. Mounted with M10 screws at the side thread points with integrated steel brackets of the subwoofer cabinet (from model year 2022). The upper row of holes allows the subwoofer to be rigged with clamps to a 29cm or 40cm truss, to be suspended with ring eyelets or to be mounted directly in ceilings with heavy-duty dowels.
Flight connectors Paveosub-115
Item no. 40115002-9005
Set of 4 connectors and screws for suspending the Paveosub-115 subs among each other. The load suspension is steel-in-steel with M10 screws.
speakON cable 0.5/1/3/6/10/15/20/30 m
Item no. 80440XXX1
Speaker cables in various lengths with Neutrik plug NL4FX. 4 x 4 sq mm, each wire 224 x 0.15 copper, diameter 11 mm, weight 273 g / m. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.
speakON adapter
Item no. 999654669
Adapter to connect two speaker cables.
PD-32-6 V2 TRUE1
Item no. 999492020
19"/3 HE intelligent 32A power distributor, suitable for applications in temporary and permanent installations. 32 A CEE Input, 6 x Schuko Output in parallel 6 x Neutrik powerCON TRUE1 Output, 1 x 16 A CEE, 6 x independent circuits (RCBO) and precise multi meter.
PD-32-6 V2 powerCON
Item no. 999492010
19"/3 HE intelligent 32A power distributor, suitable for applications in temporary and permanent installations. 32 A CEE Input, 6 x Schuko Output in parallel 6 x Neutrik powerCON Output, 1 x 16 A CEE, 6 x independent circuits (RCBO) and precise multi meter.
PD-32-6 V2 Multipin
Item no. 999492030
19"/3 HE intelligent 32A power distributor, suitable for applications in temporary and permanent installations. 32 A CEE Input, 6 x Schuko and 1 x Multipin ILME 16 pol. Output, 1 x 16 A CEE, 6 x independent circuits (RCBO) and precise multi meter.
BAGAX 2HE/19" SDS Stack-Rack
Item no. 9B1910002
SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 156 x 600 x 600 mm.
BAGAX 3HE/19" SDS Stack-Rack
Item no. 9B1910003
SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 201 x 600 x 600 mm.
BAGAX 4HE/19" SDS Stack-Rack
Item no. 9B1910004
SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 225 x 600 x 600 mm.
BAGAX 6HE/19" SDS Stack-Rack
Item no. 9B1910006
SDS Stack-Rack (Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 336 x 600 x 600 mm.
BAGAX 2HE/19"/ED SDS Stack-Rack
Item no. 9B1920002
ED SDS Stack-Rack (Extra Deep Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 156 x 600 x 780 mm.
BAGAX 4HE/19"/ED SDS Stack-Rack
Item no. 9B1920004
ED SDS Stack-Rack (Extra Deep Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 225 x 600 x 780 mm.
BAGAX 6HE/19"/ED SDS Stack-Rack
Item no. 9B1920006
ED SDS Stack-Rack (Extra Deep Slide-Door Shockmount) with retractable lids, label holder on front lid, external lock and recessed handles. Rack rails adjustable from outside with built-in device. Cable bushing for interconnecting cables with closed lid. Dimensions (HxWxD): 336 x 600 x 780 mm.
BAGAX Wheelboard for ED SDS & SDS Stack-Racks
Item no. 9B1940000
Wheelboard for ED SDS and SDS stack rack system. With stacking trays and locking system. 4 x blue wheels (two with brakes). Load capacity 450 kg.
Schuko V6 3/6/10/15/20 m
Item no. 80325XXX4
Schuko 6-fold junction with Titanex H07RN-F 3 x 2,5 sq mm cable in various lengths. The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance.
XLR signal cable 0,5/3/6/10/15/20/30/50 m
Item no. 80205XXX5
XLR signal cable in different lengths with Neutrik connectors NC3FXX-B and B-NC3MXX, black housing and gold-plated contacts. Large wire diameter of 2 x 0,5 sq mm with 28 x 0.15 sq mm copper per core, 100 % shielding due to dense copper spiral turner and metallised fleece.
powerCON TRUE1-TOP 3/6/10/15/20/30/50 m
Item no. 80325XXX3
Titanex H07RN-F 3 x 2.5 sq mm cable in various lengths.The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance. With Neutrik powerCON TRUE1 - NAC3FX-W-TOP and NAC3MX-W-TOP device connectors.
powerCON TRUE1-TOP-Schuko 3/6/10/15/20/30/50 m
Item no. 80325XXX2
Titanex H07RN-F 3 x 2.5 sq mm cable in various lengths.The special jacket surface assumes little dirt and is easy to clean. Even cold nor flexible. Assembled with some pressed ferrules for maximum contact area and minimal contact resistance. With Neutrik powerCON TRUE1 - NAC3FX-W-TOP and Schuko device connectors.
